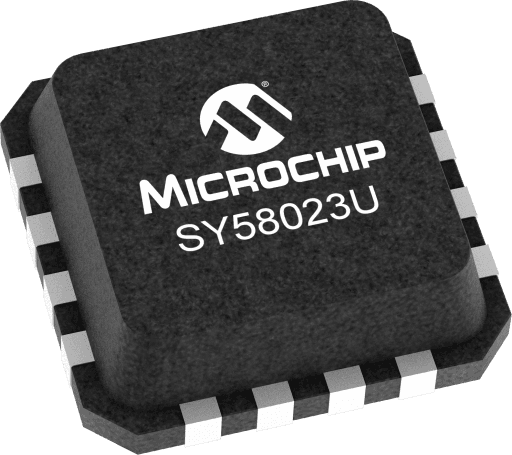

Microchip SY58023UMG

Manufacturer No:

SY58023UMG

Manufacturer:

Microchip

Package:

16-VFQFN Exposed Pad, 16-MLF®

Description:

Ultra-Precision 2x2 CML Crosspoint Switch

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY58023UMG information

Microchip SY58023UMG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY58023UMG.

Type
Parameter

Description
2x2 Crosspoint Switch 10.7 Gbps

Input
ANY

Output
CML

Supply Voltage
2.5/3.3

Icc (mA)
100

Max Within Device Skew (ps)
20

OE
False

Input Mux
True

Max Prop Delay (ps)
285

Download datasheets and manufacturer documentation for Microchip SY58023UMG.

Data Sheets:

b2836037c67b6e74bc2f6a101d5b93de.pdf

User Guide:

26eed2913c82aa9f46471908247f61ff.pdf

The SY58023U is a 2.5V/3.3V precision, high-speed, fully differential CML 2x2 crosspoint switch. The SY58023U is optimized to provide two identical output copies with less than 20ps of skew and ultra-low jitter. It can route clock signals as fast as 6GHz or data up to 10.7Gbps.The differential input includes Micrel’s unique, 3-pin input termination architecture that allows the SY58023U to directly interface to LVPECL, LVDS, and CML differential signals (AC- or DC-coupled) as small as 100mV (200mVpp) without any level-shifting or termination resistor networks in the signal path. The CML outputs features 400mV typical swing into 50Ω loads, and provide an extremely fast rise/fall time guaranteed to be less than 60ps.The SY58023U operates from a +2.5V ±5% supply or +3.3V ±10% supply and is guaranteed over the full industrial temperature range (-40°C to +85°C). For applications that require high speed dual CML switches, consider the SY58024U. The SY58023U is part of Micrel’s high-speed, Precision Edge® product line.

>10.7Gbps data throughput
<60ps tr/tf times
<285ps tpd (IN-to-Q)
<20ps skew
<10psPP total jitter (clock)
<1psRMS random jitter (data)
<10psPP deterministic jitter (data)
Crosstalk induced jitter: <0.7psRMS
Accepts an input signal as low as 100mV
Unique input termination and VT pin accepts DCcoupled and AC-coupled differential inputs: LVPECL, LVDS, and CML
50O source terminated CML outputs
Fully differential inputs/outputs
Power supply 2.5V ±5% and 3.3V ±10%
Industrial -40°C to +85°C temperature range
Available in 16-pin (3mm x 3mm) MLF® package
