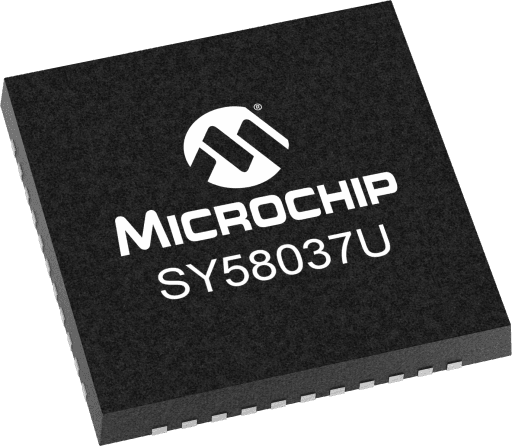

Microchip SY58037UMY

Manufacturer No:

SY58037UMY

Manufacturer:

Microchip

Package:

44-VFQFN Exposed Pad, 44-MLF®

Description:

5Gbps 8:1 CML Multiplexer w/ 1:2 Fanout

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY58037UMY information

Microchip SY58037UMY technical specifications, attributes, parameters and parts with similar specifications to Microchip SY58037UMY.

Type
Parameter

Description
8:02

Input
ANY

Output
CML

Supply Voltage
2.5/3.3V

Max Freq (GHz)
4

Icc (mA)
145

Max Within Device Skew (ps)
15

OE
False

Input Mux
False

Max Prop Delay (ps)
450

Download datasheets and manufacturer documentation for Microchip SY58037UMY.

Data Sheets:

fe41c9a91de876c80bc7d5dc4ef85e2d.pdf

User Guide:

1af92f8b42592064fac6c1f071609db9.pdf

The SY58037U is a low jitter, low skew, high-speed 8:1 multiplexer with a 1:2 differential fanout buffer optimized for precision telecom and enterprise server distribution applications. The SY58037U distributes clock frequencies from DC to 4GHz and data rates to 5Gpbs guaranteed over temperature and voltage.The SY58037U differential input includes Micrel's unique, 3-pin input termination architecture that directly interfaces to any differential signal (AC- or DC-coupled) as small as 100mV (200mVpp) without any level shifting or termination resistor networks in the signal path. The outputs are 50Ω source-terminated CML with extremely fast rise/fall time guaranteed to be less than 70ps.The SY58037U features a patent-pending isolation design that significantly improves channel-to-channel crosstalk performance.The SY58037U operates from a 2.5V ±5% or 3.3V ±10% supply and is guaranteed over the full industrial temperature range of -40°C to +85°C. The SY58037U is part of Micrel's high-speed, Precision Edge® product line.

Selects between 1 of 8 inputs, and provides two precision, low skew CML output copies
DC to 5Gbps throughput
<450ps propagation delay IN-to-Q (VIN = 300mV)
<70ps tr/ tf time
<15ps skew (output-to-output)
Unique, patent-pending, channel-to-channel isolation design provides superior crosstalk performance
<1psRMS random jitter
<10psPP deterministic jitter
<10psPP total jitter (clock)
<0.7psRMS crosstalk-induced jitter
Unique, patent-pending, input termination and VT pin accepts DC- and AC-coupled inputs (CML, PECL, LVDS)
400mV CML output swing
50O source terminated outputs minimize round-trip reflections
Power supply 2.5V ±5% or 3.3V ±10%
-40°C to +85°C temperature range
Available in 44-pin (7mm x 7mm) QFN package
