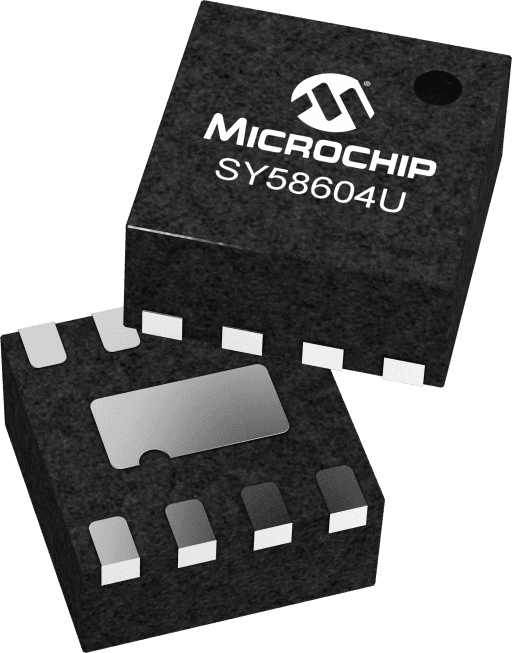

Microchip SY58604UMG-TR

Manufacturer No:

SY58604UMG-TR

Manufacturer:

Microchip

Package:

8-VFDFN Exposed Pad, 8-MLF®

Description:

4.25Gbps LVPECL Buffer w/ FSI Inputs

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY58604UMG-TR information

Microchip SY58604UMG-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip SY58604UMG-TR.

Type
Parameter

Description
Line/Driver Receiver

Input
ANY

Output
LVPECL

Supply Voltage
2.5/3.3V

Max Freq (GHz)
3.2

Icc (mA)
45

OE
False

Input Mux
False

Number Of Outputs
0

Max Prop Delay (ps)
450

Download datasheets and manufacturer documentation for Microchip SY58604UMG-TR.

Data Sheets:

6ff9dd5f4a6c5791623dfe4bfe20fa85.pdf

User Guide:

e7b825318823bdd13202599ed1c4fbf4.pdf

The SY58604U is a 2.5/3.3V, high-speed, fully differential LVPECL buffer optimized to provide less than 10pspptotal jitter. The SY58604U can process clock signals as fast as 2.5GHz or data patterns up to 3.2Gbps.The differential input includes Micrel’s unique, 3-pin input termination architecture that interfaces to LVPECL, LVDS or CML differential signals, (AC- or DC-coupled) as small as 100mV (200mVpp) without any level-shifting or termination resistor networks in the signal path. For AC-coupled input interface applications, an integrated voltage reference (VREF-AC) is provided to bias the VT pin. The output is 800mV LVPECL, with extremely fast rise/fall times guaranteed to be less than 110ps.The SY58604U operates from a 2.5V ±5% supply or 3.3V ±10% supply and is guaranteed over the full industrial temperature range (-40°C to +85°C). For applications that require CML or LVDS outputs, consider the SY58603U and the SY58605U, buffers with 400mV and 325mV output swings respectively. The SY58604U is part of Micrel's high-speed, Precision Edge® product line.

Precision 800mV LVPECL buffer
DC-to >3.2Gbps throughput
<350ps typical propagation delay (IN-to-Q)
<110ps rise/fall times
Prevents output from oscillating when input is invalid
Ultra-low jitter design
<1psRMS cycle-to-cycle jitter
<10psPP total jitter
<1psRMS random jitter
<10psPP deterministic jitter
High-speed LVPECL output
2.5V ±5% or 3.3V ±10% power supply operation
Industrial temperature range: -40°C to +85°C
Available in 8-pin (2mm x 2mm) DFN package
