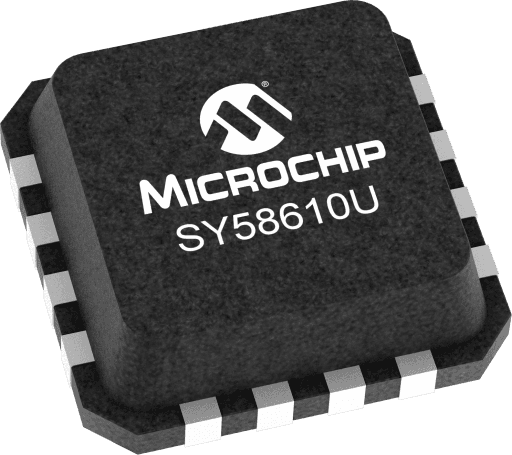

Microchip SY58610UMG

Manufacturer No:

SY58610UMG

Manufacturer:

Microchip

Package:

16-VFQFN Exposed Pad, 16-MLF®

Description:

4.25Gbps 2:1 LVPECL Mux w/ FSI Inputs

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY58610UMG information

Microchip SY58610UMG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY58610UMG.

Type
Parameter

Description
2:01

Input
ANY

Output
LVPECL

Supply Voltage
2.5/3.3V

Max Freq (GHz)
2.5

Icc (mA)
40

Max Within Device Skew (ps)
20

OE
False

Input Mux
False

Max Prop Delay (ps)
470

Download datasheets and manufacturer documentation for Microchip SY58610UMG.

Data Sheets:

3d7a46bf8e2a5f702b7e958c0e1fc2aa.pdf

User Guide:

fb655715240a004c3fcb3f9e7ecfa561.pdf

The SY58610U is a 2.5/3.3V, high-speed, fully differential LVPECL 2:1 MUX capable of processing clock signals up to 2.5GHz and data patterns up to 3.2Gbps. The SY58610U is optimized to provide a buffered output of the selected input with less than 10psPP total jitter.The differential input includes Micrel's unique, 3-pin input termination architecture that interfaces to LVPECL, LVDS or CML differential signals, (AC- or DC-coupled) as small as 100mV (200mVpp) without any level-shifting or termination resistor networks in the signal path. For AC-coupled input interface applications, an integrated reference voltage (VREF-AC) is provided to bias the VT pin. The outputs are 800mV LVPECL, with extremely fast rise/fall times guaranteed to be less than 130ps.The SY58610U operates from a 2.5V ±5% supply or 3.3V ±10% supply and is guaranteed over the full industrial temperature range (-40°C to +85°C). For applications that require CML or LVDS outputs, consider Micrel's SY58609U and SY58611U, 2:1 MUX with 400mV and 325mV output swings, respectively. The SY58610U is part of Micrel's high-speed, Precision Edge® product line.

Precision 800mV LVPECL 2:1 MUX
DC-to >3.2Gbps throughput
<370ps propagation delay (IN-to-Q)
<130ps rise/fall times
Prevents outputs from oscillating when input is invalid
Unique, patented MUX input isolation design minimizes adjacent channel crosstalk
<1psRMS cycle-to-cycle jitter
<10psPP total jitter
<1psRMS random jitter
<10psPP deterministic jitter
High-speed LVPECL outputs
2.5V ±5% or 3.3V ±10% power supply operation
Industrial temperature range: -40°C to +85°C
Available in 16-pin (3mm x 3mm) QFN package
