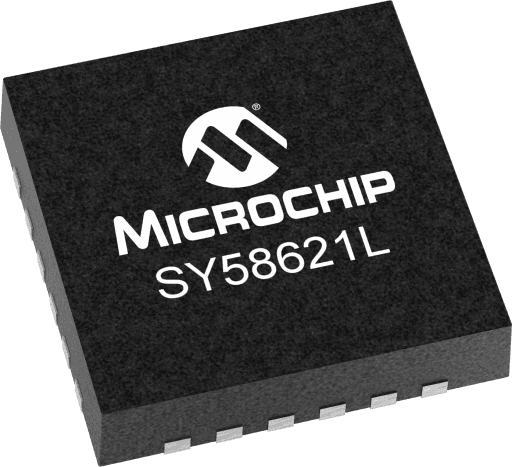

Microchip SY58621LMG

Manufacturer No:

SY58621LMG

Manufacturer:

Microchip

Package:

24-VFQFN Exposed Pad, 24-MLF®

Description:

4.25Gbps Transceiver w/ CML/LVPECL Outputs

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY58621LMG information

Microchip SY58621LMG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY58621LMG.

Type
Parameter

Input
Any

Supply Voltage
3.3

Max Freq (GHz)
2.5

Icc (mA)
23

Max Within Device Skew (ps)
-

OE
False

Input Mux
False

Number Of Outputs
0

Max Prop Delay (ps)
340

Download datasheets and manufacturer documentation for Microchip SY58621LMG.

Data Sheets:

a572764f1374050f1e90442f812427ca.pdf

User Guide:

87f5ec3a5176d45d6649a21878bacf7e.pdf

The SY58621L is a low jitter, high-speed transceiver with a variable swing LVPECL transmitter buffer and a CML high-gain receiver optimized for precision telecom and enterprise server transmission line and backplane data management. The SY58621L distributes data to 3.2Gbps guaranteed over temperature and voltage.The SY58621L transmitter differential input includes Micrel's unique, patented 3-pin input termination architecture that directly interfaces to any (AC- or DCcoupled) differential signal as small as 100mV (200mVPP) without any termination resistor network in the signal path. The receiver differential input is optimized to interface directly to AC-coupled signals as small as 10mV (20mVPP). The receiver output is 50Ω source-terminated CML and the transmitter output is variable swing 80mV to 800mV LVPECL with extremely fast rise/fall time.To support remote self-testing, the SY58621L features a high-speed loopback test mode. The input control signal LOOPBACK enables an internal loopback path from the transmitter input to the receiver output.The SY58621L operates from a 3.3V ±10% supply and is guaranteed over the full industrial temperature range of -40°C to +85°C. The SY58621L is part of Micrel's high-speed, Precision Edge® product line. For applications that requires a CML receiver and transmitter, consider the SY58620L.

Maximum Throughput 3.2Gbps
<160ps tr/tf time
Patented input termination directly interfaces to AC or DC-coupled differential inputs
Variable swing LVPECL output
32dB high-gain Input
Internal 50O input termination
Accepts AC-coupled input signals as small as 10mV (20mvPP)
400mV (800mVPP) differential CML output swing
High-gain, TTL-compatible LOS output with internal 4.75kO pull-up
Programmable LOS level set
<5psRMS random jitter
Patent-pending MUX isolates the receiver and the transmitter channels minimizing on crosstalk
Selectable loopback diagnostic mode
Output enables on transmitter and receiver outputs
Power supply +3.3V ±10%
Industrial temperature range -40°C to +85°C
Available in 24-pin (4mm x 4mm) QFN
