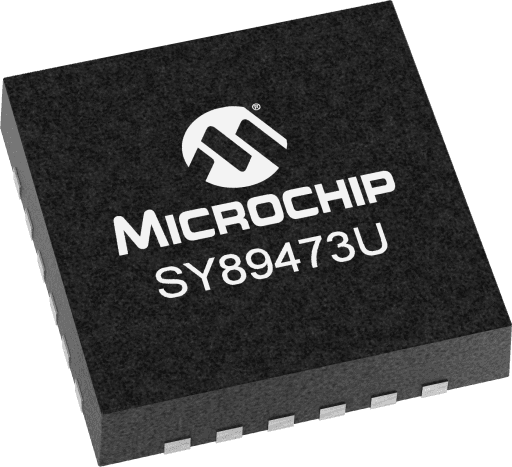

Microchip SY89473UMG

Manufacturer No:

SY89473UMG

Manufacturer:

Microchip

Package:

24-VFQFN Exposed Pad, 24-MLF®

Description:

2.5/3.3V 2:1 LVPECL MUX w/ 1:2 Fanout

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY89473UMG information

Microchip SY89473UMG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY89473UMG.

Type
Parameter

Description
2:2

Input
ANY

Output
LVPECL

Supply Voltage
2.5/3.3

Max Freq (GHz)
3

Icc (mA)
45

Max Within Device Skew (ps)
20

OE
False

Input Mux
True

Buffer Type
Fanout

Fanout
1:2

Max Prop Delay (ps)
600

Download datasheets and manufacturer documentation for Microchip SY89473UMG.

Data Sheets:

23fbec1b925265622e758706fe60e646.pdf

User Guide:

ef79ce2f40284918f5ae2c5cb46ec51f.pdf

The SY89473U is a 2.5V/3.3V precision, high-speed 2:1 differential MUX capable of processing clocks up to 2.5GHz and data up to 2.5Gbps.The differential input includes Micrel's unique, 3-pin input termination architecture that directly interfaces to any differential signal (AC- or DC-coupled) as small as 100mV (200mVPP) without any level shifting or termination resistor networks in the signal path. The output is 800mV, 100K-compatible, LVPECL with fast rise/fall times guaranteed to be less than 190ps.The SY89473U operates from a 2.5V ±5% or 3.3V ±10% supply and is guaranteed over the full industrial temperature range of -40°C to +85°C. The SY89473U is part of Micrel's high-speed, Precision Edge® product line. For multiple-clock switchover solutions, please refer to the SY89840-SY89843U family.

Selects between two input channels and provides two copies of the selected output
DC to 2.5Gbps data throughput
DC to 2.5GHz fMAX (clock)
<500ps In-to-Out tpd
<190ps tr/tf
<20ps Output-to-output skew
Unique patented input isolation design minimizes crosstalk
Ultra-low Jitter Design:
<1psRMS random jitter
<1psRMS cycle-to-cycle jitter
<10psPP total jitter (clock)
<0.7psRMS crosstalk induced jitter
Unique patent-pending input termination and VT pin accepts DC- and AC-coupled inputs (CML, PECL, LVDS)
800mV (100K) LVPECL output swing
2.5V ±5% or 3.3V ±10% supply voltage
-40°C to +85°C industrial temperature range
Available in 24-pin (4mm x 4mm) QFN package
