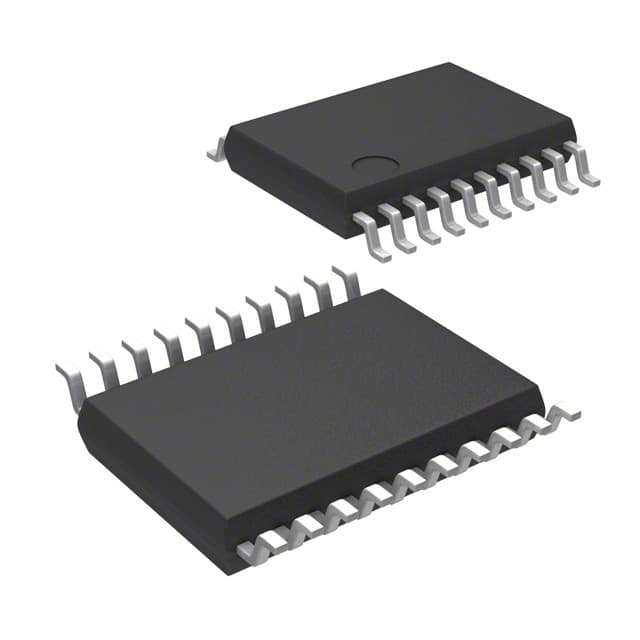

Microchip SY89645LK4G

Manufacturer No:

SY89645LK4G

Manufacturer:

Microchip

Package:

20-TSSOP (0.173, 4.40mm Width)

Description:

1:4 CMOS/LVTTL-to-LVDS Translator+ Fanout Buffer

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY89645LK4G information

Microchip SY89645LK4G technical specifications, attributes, parameters and parts with similar specifications to Microchip SY89645LK4G.

Type
Parameter

Description
1:4

Input
LVCMOS/LVTTL

Output
LVDS

Supply Voltage
3.3

Max Freq (GHz)
0.65

Icc (mA)
43

Max Within Device Skew (ps)
40

OE
False

Input Mux
False

Number Of Outputs
0

Buffer Type
Fanout

Fanout
1:4

Max Prop Delay (ps)
3000

Download datasheets and manufacturer documentation for Microchip SY89645LK4G.

Data Sheets:

b34a09e9c4b72d5f627e29b3c7094ab9.pdf

User Guide:

239d0ce2790425553620fd0738d5fc8c.pdf

The SY89645L is a 3.3V, fully differential, low skew, 1:4 LVDS fanout buffer that accepts LVTTL or LVCMOS inputs. It is capable of processing clock signals as fast as 650MHz. The LVDS signals are optimized to provide less than 40ps of output skew.The single-ended input takes a 3.3V LVTTL or LVCMOS, with a signal swing as small as 1.2V. The outputs are 280mV LVDS, with fast rise and fall times, guaranteed to be less than 400ps.The SY89645L operates from a 3.3V + 5% power supply and is guaranteed over the full industrial temperature range (-40°C to +85°C). The SY89645L is part of Micrel's Precision Edge® product line.

Four identical LVDS outputs
CLKIN accepts LVCMOS or LVTTL input levels
Maximum output frequency: 650MHz
Translates LVCMOS/LVTTL input signals to LVDS levels
<40ps output-to-output skew
<3ns propagation delay
<400ps rise/fall times
3.3V ±5% operating supply
Industrial temperature range: -40°C to +85°C
Available in 20-pin TSSOP
