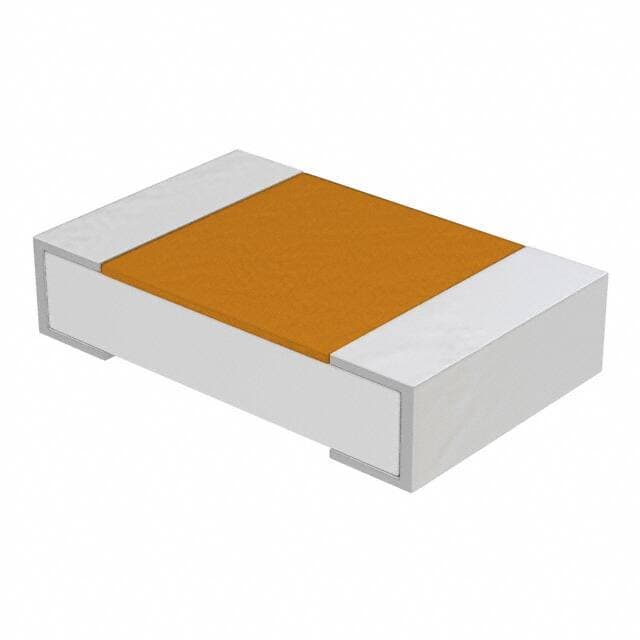

VISHAY TFPT0805L5001FV
VISHAY TFPT0805L5001FV

VISHAY TFPT0805L5001FV

Manufacturer No:

TFPT0805L5001FV

Manufacturer:

VISHAY

Package:

0805 (2125 Metric)

Description:

TFPT Series PTC THERMISTOR 5kOhm 1% TEMPERATURE COMPENSATION -55°C~125°C 2-Pin Surface Mount WRAPAROUND Tape & Reel (TR) 0805 (2125 Metric)

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TFPT0805L5001FV information

VISHAY TFPT0805L5001FV technical specifications, attributes, parameters and parts with similar specifications to VISHAY TFPT0805L5001FV.

  • Type
  • Parameter
  • Factory Lead Time
  • 13 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 0805 (2125 Metric)
  • Terminal Shape
  • WRAPAROUND
  • Number of Pins
  • 2
  • Operating Temperature
  • -55°C~125°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • TFPT
  • Published
  • 2013
  • Tolerance
  • 1%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Resistance
  • 5kOhm
  • Terminal Finish
  • Tin (Sn) - with Nickel (Ni) barrier
  • HTS Code
  • 8533.40.80.70
  • Power Rating
  • 100mW
  • Packing Method
  • TR
  • Max Power Dissipation
  • 100mW
  • Resistor Type
  • PTC THERMISTOR
  • Case Code (Metric)
  • 2125
  • Rated Power Dissipation (P)
  • 0.1W
  • Case Code (Imperial)
  • 0805
  • Operating Supply Voltage
  • 40V
  • Voltage
  • 40V
  • Max Supply Voltage
  • 40V
  • Terminal Placement
  • DUAL ENDED
  • Resistance Tolerance
  • ±1%
  • Thermistor Application
  • TEMPERATURE COMPENSATION
  • Resistance @ 25°C
  • 5kOhm
  • Height
  • 450?m
  • Length
  • 2mm
  • Width
  • 1.25mm
  • REACH SVHC
  • Unknown
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for VISHAY TFPT0805L5001FV.

Datasheets:

RohsStatement:

TFPT0805L5001FV Overview


The PTC thermistors are put into 0805 (2125 Metric) packages to protect the devices from damage. These PTC thermistors are packaged in the Tape & Reel (TR) for safety protection. The PTC thermistor has 2 terminations. There are 2 pins in this thermistor. The PTC thermistors could supply 40V voltage when it operates. The thermistor's maximum capability to transfer and conduct this power loss without overheating should be 100mW. Nominally, this thermistor can supply 40V voltage when it works. The heat produced by PTC thermistors has been rated 0.1W. The maximum voltage supplied by this thermistor should be 40V for reliable performance.

TFPT0805L5001FV Features


Moisture Sensitivity Level (MSL): 1 (Unlimited)
Package / Case: 0805 (2125 Metric)
Mount: Surface Mount
Resistance @ 25°C: 5kOhm
Terminal Shape: WRAPAROUND
2 Pins
Series: TFPT
Operating Temperature: -55°C~125°C
Tolerance: 1%


TFPT0805L5001FV Applications


There are a lot of Vishay Dale
TFPT0805L5001FV PTC Thermistors applications.


  • Temperature monitoring
  • HVAC and thermostats
  • Industrial control and appliances
  • Thermal compensation
  • Display backlights
  • Building automation
  • Thermal threshold detection
  • Motor control
  • Chargers
  • Thermal protection of winding in electric motors
