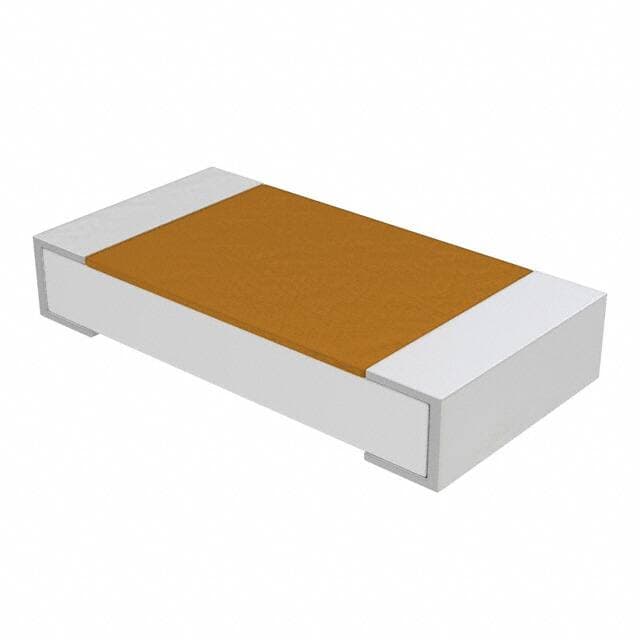

VISHAY TFPT1206L1002JV

Manufacturer No:

TFPT1206L1002JV

Manufacturer:

VISHAY

Package:

1206 (3216 Metric)

Description:

TFPT Series PTC THERMISTOR 10kOhm 5% TEMPERATURE COMPENSATION -55°C~125°C 2-Pin Surface Mount WRAPAROUND Tape & Reel (TR) 1206 (3216 Metric)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TFPT1206L1002JV information

VISHAY TFPT1206L1002JV technical specifications, attributes, parameters and parts with similar specifications to VISHAY TFPT1206L1002JV.

Type
Parameter

Factory Lead Time
13 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
1206 (3216 Metric)

Terminal Shape
WRAPAROUND

Number of Pins
2

Operating Temperature
-55°C~125°C

Packaging
Tape & Reel (TR)

Series
TFPT

Published
2012

Tolerance
5%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
SMD/SMT

Resistance
10kOhm

Terminal Finish
Tin (Sn) - with Nickel (Ni) barrier

Power Rating
125mW

Packing Method
TR

Max Power Dissipation
125mW

Depth
1.6mm

Resistor Type
PTC THERMISTOR

Case Code (Imperial)
1206

Operating Supply Voltage
50V

Voltage
50V

Max Supply Voltage
50V

Terminal Placement
DUAL ENDED

Resistance Tolerance
±5%

Thermistor Application
TEMPERATURE COMPENSATION

Resistance @ 25°C
10kOhm

Height
550?m

Length
3.2mm

Width
1.6mm

REACH SVHC
Unknown

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for VISHAY TFPT1206L1002JV.

Datasheets:

vishaydale-tfpt1206l6801jv-datasheets-7964.pdf

RohsStatement:

vishaydale-imc0402rk47nj-rohsstatement-4552.pdf

TFPT1206L1002JV Overview

To prevent damage to the PTC thermistors, they are packaged in 1206 (3216 Metric) packages. PTC thermistors are packaged in the Tape & Reel (TR) as a safety measure. Its terminations are 2. A thermistor has 2 pins. A PTC thermistor could provide 50V voltage when operating. If the thermistor is unable to transfer and conduct this power loss without overheating, then it should have a maximum capability of 125mW. When this thermistor is functioning, it can provide 50V. The maximum voltage that this thermistor should supply is 50V.

TFPT1206L1002JV Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Package / Case: 1206 (3216 Metric)
Mount: Surface Mount
Resistance @ 25°C: 10kOhm
Terminal Shape: WRAPAROUND
2 Pins
Series: TFPT
Operating Temperature: -55°C~125°C
Tolerance: 5%

TFPT1206L1002JV Applications

There are a lot of Vishay Dale
TFPT1206L1002JV PTC Thermistors applications.

Building automation
Thermal threshold detection
Motor control
Chargers
Thermal protection of winding in electric motors
Secondary protection of battery packs
Limit temperature monitoring
Over-temperature protection of power components
DC/DC converters
SMPS
