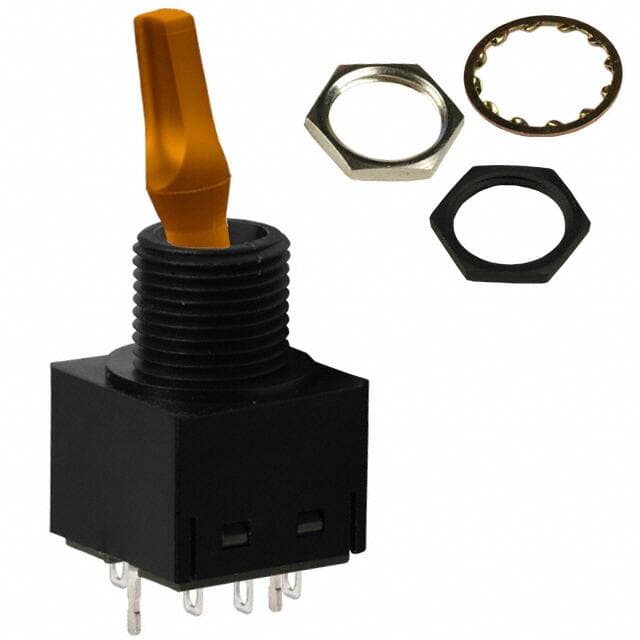

NKK Switches TL22DDAW015D

Manufacturer No:

TL22DDAW015D

Manufacturer:

NKK Switches

Package:

125

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TL22DDAW015D information

NKK Switches TL22DDAW015D technical specifications, attributes, parameters and parts with similar specifications to NKK Switches TL22DDAW015D.

Type
Parameter

Factory Lead Time
14 Weeks

Contact Material
Silver

Mount
Panel

Mounting Type
Panel Mount

Package / Case
125

Insulation Material
DIALLYL PHTHALATE

Housing Material
GLASS FILLED POLYAMIDE

Actuator Material
Polycarbonate (PC)

Terminal Material
COPPER

Operating Temperature
-10°C~55°C

Packaging
Bulk

Series
TL

Published
2003

Feature
Epoxy Sealed Terminals

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Voltage - Rated DC
12V

Current Rating (Amps)
6A AC/DC

Orientation
Vertical

Ingress Protection
IP65 - Dust Tight, Water Resistant

Current Rating
6A

Voltage - Rated AC
125V

Body Breadth
18.0086 mm

Actuator Type
Flatted

Circuit
DPDT

Switch Function
On-On

Panel Cutout Dimensions
Circular - 12.50mm Dia

Contact Resistance
10mOhm

Insulation Resistance
1000000000Ohm

Illumination Voltage (Nominal)
2.1VDC

Illumination Type, Color
LED, Amber

Dielectric Withstanding Voltage
1000VAC V

Electrical Life
25,000 Cycles

Number of Poles
2

Illumination
Illuminated

Switch Type
TOGGLE SWITCH

Contact Current Rating
3A

Illumination Type
Illuminated, LED

Bushing Thread
M12 x 1

Contact Current(AC)-Max
6A

Solderability
HAND

Body Color
BLACK

Length
18mm

Width
18mm
