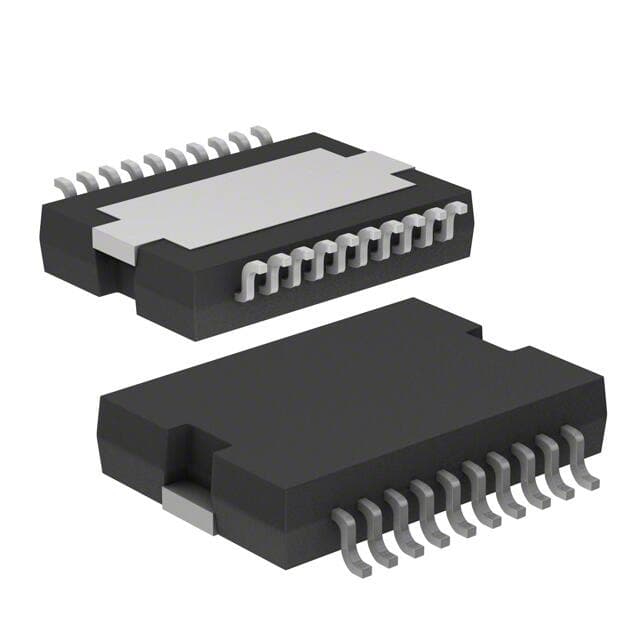

INFINEON TLE72093RAUMA1

Manufacturer No:

TLE72093RAUMA1

Manufacturer:

INFINEON

Package:

20-SOIC (0.433, 11.00mm Width) Exposed Pad

Description:

11mm mm Motor Drivers 20 13.2V V 15.9mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TLE72093RAUMA1 information

INFINEON TLE72093RAUMA1 technical specifications, attributes, parameters and parts with similar specifications to INFINEON TLE72093RAUMA1.

Type
Parameter

Factory Lead Time
24 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
20-SOIC (0.433, 11.00mm Width) Exposed Pad

Operating Temperature
-40°C~150°C TJ

Packaging
Tape & Reel (TR)

Published
1999

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

Applications
Automotive

Voltage - Supply
3.5V~5.5V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
13.2V

Terminal Pitch
1.27mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
R-PDSO-G20

Function
Driver - Fully Integrated, Control and Power Stage

Supply Voltage-Max (Vsup)
28V

Supply Voltage-Min (Vsup)
5V

Interface
SPI

Output Configuration
Half Bridge (2)

Logic Function
AND

Halogen Free
Halogen Free

Voltage - Load
5V~28V

Motor Type - AC, DC
Brushed DC

Length
15.9mm

Height Seated (Max)
3.5mm

Width
11mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for INFINEON TLE72093RAUMA1.

TLE72093RAUMA1 Overview

Drivers controllers is designed wDrivers controllersh a package of [0].A 20-SOIC (0.433, 11.00mm Width) Exposed Padcase is included with the part.Ideally, the part should be mounted by Surface Mount.This component is suitable for the component connected to Automotive.Drivers controllers is capable of supplying 3.5V~5.5V volts.This device operates at a temperature range of -40°C~150°C TJ.Drivers controllers is possible to categorize the motor type as Brushed DC.This part offers 20terminations.Drivers controllers is possible to apply voltage to the load at the rate of 5V~28V.Drivers controllers is important to remember that this amplifier should be run at 13.2V.A Surface Mountmounting method is recommended for this product.In this device, the analog IC STEPPER MOTOR CONTROLLERis employed.

TLE72093RAUMA1 Features

Applications : Automotive
Load voltage across the chip 5V~28V

TLE72093RAUMA1 Applications

There are a lot of Infineon Technologies
TLE72093RAUMA1 motor drivers applications.

Large outdoor LED display
Commercial office
Hospitality buildings
Smart lighting applications
Automotive applications
Dome
Dash
Footwell lighting
Indicator
Telltale lights
