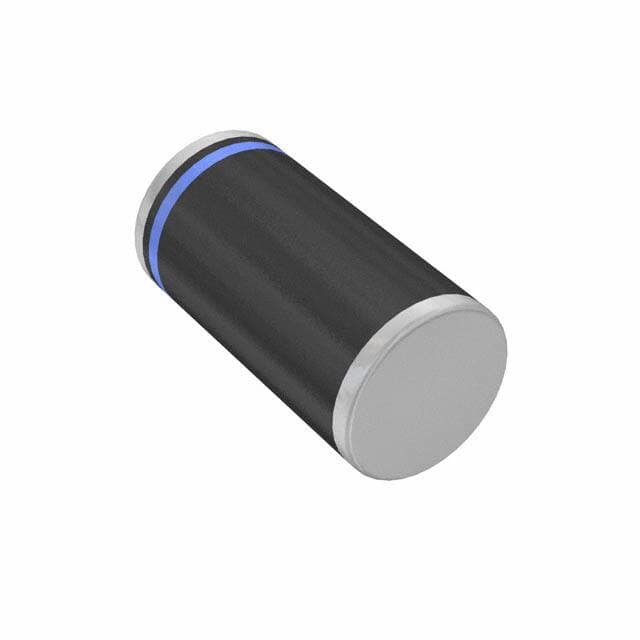

ST TMBAT49FILM
ST TMBAT49FILM

ST TMBAT49FILM

Manufacturer No:

TMBAT49FILM

Manufacturer:

ST

Package:

DO-213AB, MELF

Description:

Schottky Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 420mV @ 100mA -65°C~125°C 200?A @ 80V 2-Termination Tape & Reel (TR) DO-213AB, MELF Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TMBAT49FILM information

ST TMBAT49FILM technical specifications, attributes, parameters and parts with similar specifications to ST TMBAT49FILM.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 7 months ago)
  • Factory Lead Time
  • 15 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • DO-213AB, MELF
  • Number of Pins
  • 2
  • Weight
  • 4.535924g
  • Diode Element Material
  • SILICON
  • Packaging
  • Tape & Reel (TR)
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Max Operating Temperature
  • 125°C
  • Min Operating Temperature
  • -65°C
  • HTS Code
  • 8541.10.00.70
  • Capacitance
  • 120pF
  • Subcategory
  • Rectifier Diodes
  • Voltage - Rated DC
  • 80V
  • Terminal Position
  • END
  • Terminal Form
  • WRAP AROUND
  • Base Part Number
  • BAT49
  • Pin Count
  • 2
  • Number of Elements
  • 1
  • Polarity
  • Standard
  • Element Configuration
  • Single
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Schottky
  • Current - Reverse Leakage @ Vr
  • 200?A @ 80V
  • Output Current
  • 500mA
  • Voltage - Forward (Vf) (Max) @ If
  • 420mV @ 100mA
  • Case Connection
  • ISOLATED
  • Forward Current
  • 500mA
  • Max Reverse Leakage Current
  • 200?A
  • Operating Temperature - Junction
  • -65°C~125°C
  • Max Surge Current
  • 10A
  • Current - Average Rectified (Io)
  • 500mA DC
  • Forward Voltage
  • 1V
  • Max Reverse Voltage (DC)
  • 80V
  • Average Rectified Current
  • 500mA
  • Peak Reverse Current
  • 200?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 80V
  • Capacitance @ Vr, F
  • 120pF @ 0V 1MHz
  • Peak Non-Repetitive Surge Current
  • 10A

Download datasheets and manufacturer documentation for ST TMBAT49FILM.

Datasheets:

TMBAT49FILM Overview


Reverse leakage current from this device is 200?A volts at its maximum.For this device, the average rectified current is 500mA volts.In this case, forward current can reach 500mA.As you can see, the fuse's current rating is 500mA, which means that it can carry a maximum current for an indefinite period without losing too much performance.Phase diode rectifier is possible to use a surge current of maximum value 10A.Capacitance can cause the device to deliver a value of 120pF.Based on the data chart, the peak reverse is 200?A.

TMBAT49FILM Features


a maximal reverse leakage current of 200?A volts
an average rectified current of 500mA volts
a current rating of 500mA
the peak reverse is 200?A


TMBAT49FILM Applications


There are a lot of STMicroelectronics
TMBAT49FILM applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode

User Guide
