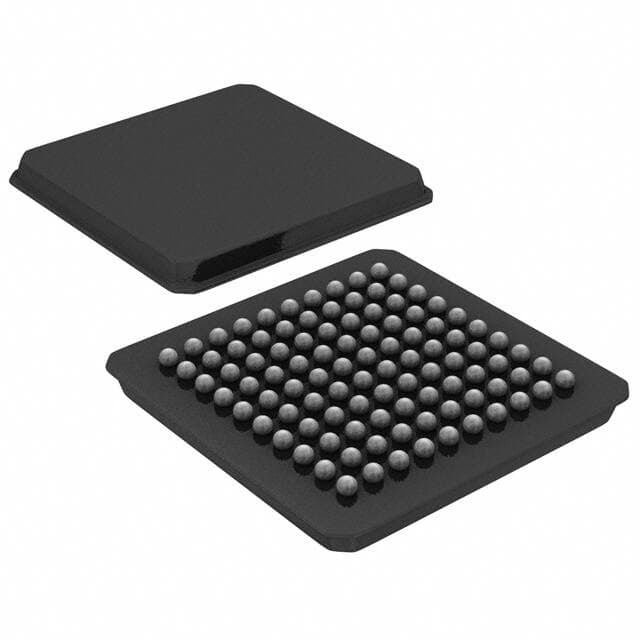

TI TMS320F2802ZGMA

Manufacturer No:

TMS320F2802ZGMA

Manufacturer:

Package:

100-LFBGA

Description:

64KB 32K x 16 FLASH C28x 32-Bit Microcontroller Automotive, AEC-Q100, C2000™ C28x Fixed-Point Series 320F2802 100 Pin 100MHz 1.8V 100-LFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TMS320F2802ZGMA information

TI TMS320F2802ZGMA technical specifications, attributes, parameters and parts with similar specifications to TI TMS320F2802ZGMA.

Type
Parameter

Lifecycle Status
LIFEBUY (Last Updated: 5 days ago)

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
100-LFBGA

Number of Pins
100

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Series
Automotive, AEC-Q100, C2000™ C28x Fixed-Point

JESD-609 Code
e1

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
100

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Additional Feature
ALSO REQUIRES 3.3V SUPPLY

Subcategory
Digital Signal Processors

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Supply Voltage
1.8V

Terminal Pitch
0.8mm

Frequency
100MHz

Base Part Number
320F2802

Pin Count
100

Interface
CAN, I2C, SCI, SPI, UART, USART

Memory Size
64kB

Oscillator Type
Internal

RAM Size
6K x 16

Voltage - Supply (Vcc/Vdd)
1.71V~1.89V

uPs/uCs/Peripheral ICs Type
DIGITAL SIGNAL PROCESSOR, OTHER

Core Processor
C28x

Peripherals
POR, PWM, WDT

Program Memory Type
FLASH

Core Size
32-Bit

Program Memory Size
64KB 32K x 16

Connectivity
CANbus, I2C, SCI, SPI, UART/USART

Supply Current-Max
230mA

Bit Size
32

Data Converter
A/D 16x12b

Data Bus Width
32b

PWM Channels
6

Boundary Scan
YES

Low Power Mode
YES

Number of A/D Converters
16

Number of Programmable I/O
35

Integrated Cache
NO

RAM (words)
3072

Download datasheets and manufacturer documentation for TI TMS320F2802ZGMA.

PCN Design/Specification:

texasinstruments-tms320f2812ghha-pcndesignspecification-7479.pdf

TMS320F2802ZGMA Overview

This Microcontroller comes in a 100-LFBGA package. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 32-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~85°C TA Operating Temperature. Microcontroller runs in Automotive, AEC-Q100, C2000™ C28x Fixed-Point Series. The size of the program memory of Microcontroller is 64KB 32K x 16. MCU is powered by C28x Core Processor. The device belongs to DIGITAL SIGNAL PROCESSOR, OTHER uPs/uCs/Peripheral ICs Type. The MCU has a number of 100 terminals. Microcontroller comes with 32 bit size. The component always operates in 1.8V supply voltage. The part owns 64kB memory size. You can find alternatives through the base part number 320F2802. MCU's frequency is 100MHz. The device works in 6 PWM channels. The pin number of the component remains 100. It counts 100 pins. It programs in 35 Programmable I/O. To name a few, there are additional features like ALSO REQUIRES 3.3V SUPPLY. It enjoys 1 UART channels. The device has a set of 16 A/D converters. 3 external interrupts are included in the eletrical part. There are a series of 10 timers in the Microcontroller chip.

TMS320F2802ZGMA Features

100-LFBGA package
Mounting type of Surface Mount
Digital Signal Processors subcategory

TMS320F2802ZGMA Applications

There are a lot of Texas Instruments
TMS320F2802ZGMA Microcontroller applications.

Automatic control
Equipment control
Instrument control
Toys
Robots
Radio
Television
Heater/Fan
Calculator
Kindle
