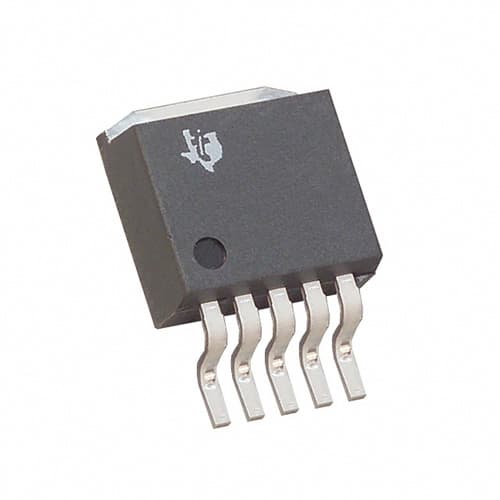

TI TPS758A01KTTRG3

Manufacturer No:

TPS758A01KTTRG3

Manufacturer:

Package:

TO-263

Description:

Adjustable PMIC 4 TO-263

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TPS758A01KTTRG3 information

TI TPS758A01KTTRG3 technical specifications, attributes, parameters and parts with similar specifications to TI TPS758A01KTTRG3.

Type
Parameter

Package / Case
TO-263

Surface Mount
YES

Number of Pins
5

JESD-609 Code
e3

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
5

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Subcategory
Other Regulators

Packing Method
TAPE AND REEL

Technology
PMOS

Terminal Position
SINGLE

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Pin Count
4

Number of Outputs
1

Output Type
Adjustable

Max Output Current
3A

Polarity
Positive

Current - Output
3A

Accuracy
3 %

Max Output Voltage
5V

Voltage - Output
5V

Min Input Voltage
2.8V

Current - Input Bias
125μA

Max Input Voltage
5.5V

Dropout Voltage
150mV

Min Output Voltage
1.24V

Min Current Limit
5.5A

Line Regulation-Max (%/V)
0.1

Voltage Reference
1.24V

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI TPS758A01KTTRG3.

TPS758A01KTTRG3 Description

TPS758A01KTTRG3 voltage regulator has advantages from low-noise, low-dropout, and a miniaturized design. The low dropout voltage as well as low quiescent current permit operation at very minimal power consumption. TPS758A01KTTRG3 regulator is perfect to power noise-sensitive components, for instance, video, medical, or test and measurement application.

TPS758A01KTTRG3 Features

Low Dropout

Low Output Noise

High Power-Supply Ripple Rejection

Wide Output Voltage Range

Wide Input Voltage Range

TPS758A01KTTRG3 Applications

Ultralow Power Microcontrollers

Cellular Handsets

Cordless Handsets

Portable Equipment

Battery-Powered Equipment
