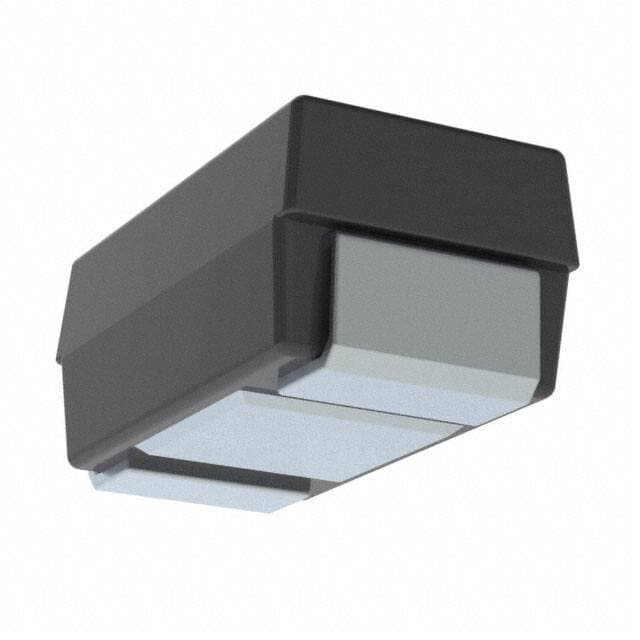

VISHAY TR3C106K035C0450

Manufacturer No:

TR3C106K035C0450

Manufacturer:

VISHAY

Package:

, 2312

Description:

Description: CAPACITOR, TANTALUM, SOLID, POLARIZED, 35 V, 10 uF, SURFACE MOUNT, 2312, CHIP, ROHS COMPLIANT

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TR3C106K035C0450 information

VISHAY TR3C106K035C0450 technical specifications, attributes, parameters and parts with similar specifications to VISHAY TR3C106K035C0450.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
VISHAY INTERTECHNOLOGY INC

Package Description
, 2312

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8532.21.00.50

Samacsys Manufacturer
Vishay

Capacitance
10 µF

Capacitor Type
TANTALUM CAPACITOR

Dielectric Material
TANTALUM (DRY/SOLID)

ESR
450 mΩ

Height
2.5 mm

JESD-609 Code
e3

Leakage Current
0.0035 mA

Length
6 mm

Mounting Feature
SURFACE MOUNT

Negative Tolerance
10%

Number of Terminals
2

Operating Temperature-Max
125 °C

Operating Temperature-Min
-55 °C

Package Shape
RECTANGULAR PACKAGE

Package Style
SMT

Polarity
POLARIZED

Positive Tolerance
10%

Rated (DC) Voltage (URdc)
35 V

Ripple Current
196 mA

Size Code
2312

Surface Mount
YES

Tan Delta
0.06

Terminal Finish
MATTE TIN

Terminal Shape
J BEND

Width
3.2 mm

Download datasheets and manufacturer documentation for VISHAY TR3C106K035C0450.

TR3C106K035C0450 Overview

Set the capacitor's ripple current to 490mA.Known as internal resistance, equivalent series resistance (ESR) is the loss of energy in an electronic circuit containing a resistor and an ideal (perfect) capacitor, whose resistance is 450mOhm in this case.This capacitor leaks 3.5?A current.A capacitor's dissipation factor is the power lost when AC is applied to the capacitor, which is 6 %.The Tan Delta test of insulating oil determines its quality by measuring its electrical dielectric properties.

TR3C106K035C0450 Features

490mA is the ripple current of the capacitor
a leakage current of 3.5?A in this capacitor
the dissipation factor is 6 %
its tan delta is 0.06

TR3C106K035C0450 Applications

There are a lot of Vishay Sprague
TR3C106K035C0450 applications of tantalum capacitors.

Computer
General purpose
General low power DC/DC and LDO
Automotive ECU
ABS
Airbag systems
Avionics,
Industrial control units
Military / aerospace
General purpose
