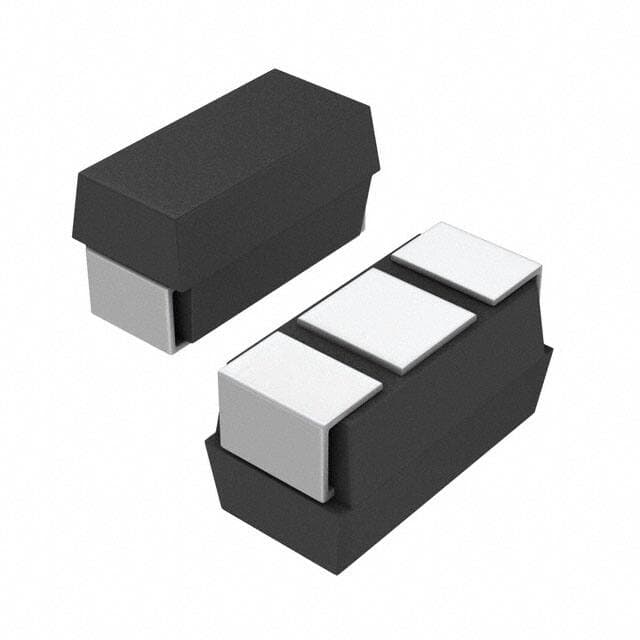

VISHAY TR3W107K025C0100

Manufacturer No:

TR3W107K025C0100

Manufacturer:

VISHAY

Package:

2924 (7361 Metric)

Description:

100?F ±10% 100mOhm 2-Termination POLARIZED TANTALUM (DRY/SOLID) 25?A Tape & Reel (TR) 2924 (7361 Metric)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TR3W107K025C0100 information

VISHAY TR3W107K025C0100 technical specifications, attributes, parameters and parts with similar specifications to VISHAY TR3W107K025C0100.

Type
Parameter

Factory Lead Time
14 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
2924 (7361 Metric)

Terminal Shape
J BEND

Dielectric Material
TANTALUM (DRY/SOLID)

Operating Temperature
-55°C~125°C

Packaging
Tape & Reel (TR)

Series
TANTAMOUNT®, TR3

Published
2013

Size / Dimension
0.287Lx0.236W 7.30mmx6.00mm

Tolerance
±10%

JESD-609 Code
e3

Feature
General Purpose

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
SMD/SMT

ECCN Code
EAR99

Type
Molded

Capacitance
100?F

Voltage - Rated DC
25V

Packing Method
TR, 7 Inch

Case Code (Metric)
7360

Case Code (Imperial)
2924

ESR (Equivalent Series Resistance)
100mOhm

Polarity
POLARIZED

Leakage Current
25?A

Ripple Current
1.58A

Dissipation Factor
15 %

Manufacturer Size Code
W

Height
3.5mm

Height Seated (Max)
0.150 3.80mm

Length
7.3mm

REACH SVHC
Unknown

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for VISHAY TR3W107K025C0100.

TR3W107K025C0100 Overview

The capacitor's ripple current is set to 1.58A.Equivalent series resistance (ESR), also known as internal resistance, is a value representing the loss of useful energy in a simple electronic circuit consisting of a resistor and an ideal (perfect) capacitor, and its resistance is 100mOhm.The leakage current of this capacitor is 25?A. The dissipation factor of a capacitor is the power loss when AC is applied through the capacitor, and this capacitor's factor is 15 %.

TR3W107K025C0100 Features

1.58A is the ripple current of the capacitor
a leakage current of 25?A in this capacitor
the dissipation factor is 15 %

TR3W107K025C0100 Applications

There are a lot of Vishay Sprague
TR3W107K025C0100 applications of tantalum capacitors.

Industrial
Avionics / military / space
Telecom infrastructure
Consumer
Computer
General purpose
General low power DC/DC and LDO
Automotive ECU
ABS
Airbag systems
