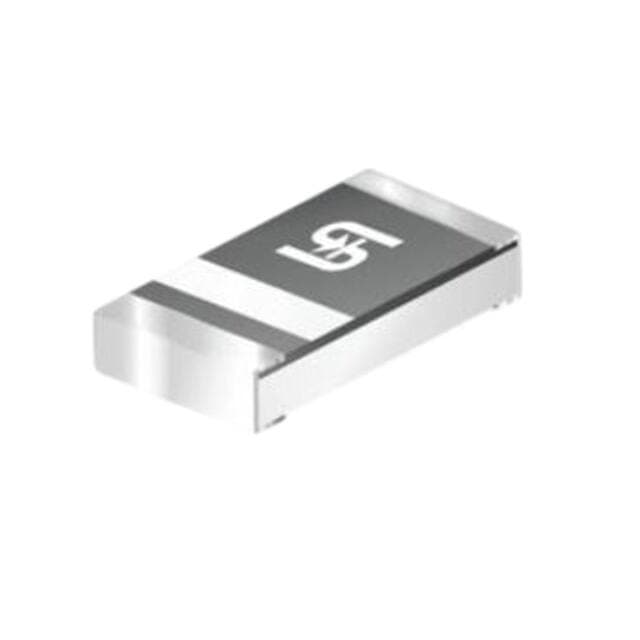

Taiwan Semiconductor TS4148C RZG

Manufacturer No:

TS4148C RZG

Manufacturer:

Taiwan Semiconductor

Package:

0603 (1608 Metric)

Description:

Standard Diode Rectifier Small Signal =< 200mA (Io), Any Speed 1.25V @ 100mA -55°C~150°C 5?A @ 75V 2-Termination Digi-Reel® 0603 (1608 Metric) Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TS4148C RZG information

Taiwan Semiconductor TS4148C RZG technical specifications, attributes, parameters and parts with similar specifications to Taiwan Semiconductor TS4148C RZG.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Surface Mount

Package / Case
0603 (1608 Metric)

Surface Mount
YES

Diode Element Material
SILICON

Packaging
Digi-Reel®

Published
2013

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Additional Feature
HIGH RELIABILITY

HTS Code
8541.10.00.70

Subcategory
Rectifier Diodes

Terminal Position
DUAL

Terminal Form
WRAP AROUND

Peak Reflow Temperature (Cel)
260

Time@Peak Reflow Temperature-Max (s)
30

JESD-30 Code
R-PDSO-R2

Qualification Status
Not Qualified

Operating Temperature (Max)
150°C

Number of Elements
1

Power Dissipation-Max
0.2W

Speed
Small Signal =< 200mA (Io), Any Speed

Diode Type
Standard

Current - Reverse Leakage @ Vr
5?A @ 75V

Voltage - Forward (Vf) (Max) @ If
1.25V @ 100mA

Operating Temperature - Junction
-55°C~150°C

Output Current-Max
0.1A

Voltage - DC Reverse (Vr) (Max)
75V

Current - Average Rectified (Io)
150mA

Rep Pk Reverse Voltage-Max
75V

Capacitance @ Vr, F
4pF @ 0V 1MHz

Non-rep Pk Forward Current-Max
0.8A

Reverse Recovery Time-Max
0.004?s

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Taiwan Semiconductor TS4148C RZG.

Datasheets:

taiwansemiconductorcorporation-ts4148crzg-datasheets-7049.pdf

Environmental Information:

taiwansemiconductorcorporation-smbj26ca-environmentalinformation-9944.pdf

TS4148C RZG Description

TS4148C RZG is a 75V Switching Diode. A switching diode, a pn junction diode, is also called a small-signal diode.

Applications of pn junction diodes include rectification. Diodes for mains rectification require a high withstand voltage (200 to 1000 V) and

a high-rated current (0.5 A or higher). In contrast, switching diodes are designed to be used for low-voltage logic.

Therefore, switching diodes provide a low withstand voltage of 80 to 200 V and a low rated current of 0.15 to 0.5 A.

TS4148C RZG Features

Low power loss, high efficiency

Ideal for automated placement

High surge current capability

Moisture sensitivity level: level 1, per J-STD-020

Compliant with RoHS directive 2011/65/EU and in accordance with WEEE 2002/96/EC

Halogen-free according to IEC 61249-2-21

TS4148C RZG Applications

Switching mode power supply (SMPS)

Adapters

Lighting application

On-board DC/DC converter
