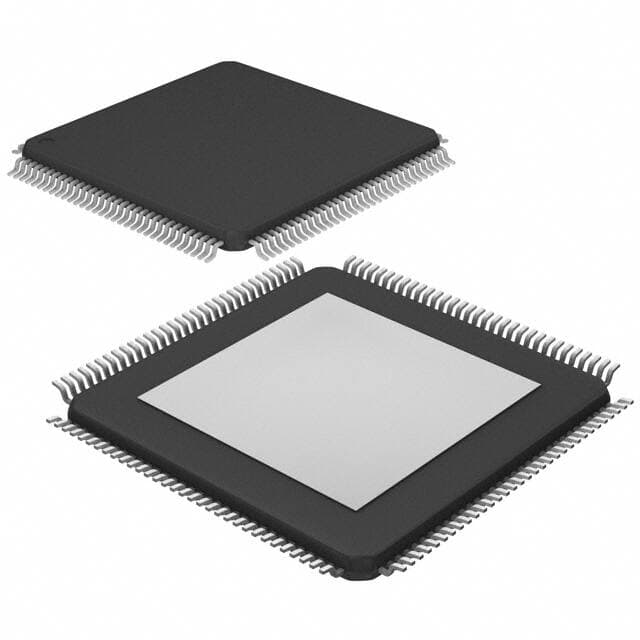

TI TSB43AB21APDT

Manufacturer No:

TSB43AB21APDT

Manufacturer:

Package:

128-TQFP

Description:

3.3V CMOS IEEE 1394-1995, 1394a-2000, OHCI, Firewire?, i.Link? PCI Controllers Interface ICs QUAD TSB43AB21 128 Pins Physical Layer Controller 0.4mm 128-TQFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TSB43AB21APDT information

TI TSB43AB21APDT technical specifications, attributes, parameters and parts with similar specifications to TI TSB43AB21APDT.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 5 days ago)

Factory Lead Time
6 Weeks

Package / Case
128-TQFP

Surface Mount
YES

Number of Pins
128

Weight
503.487531mg

Packaging
Tray

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
128

Termination
SMD/SMT

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

HTS Code
8542.31.00.01

Subcategory
Bus Controllers

Technology
CMOS

Voltage - Supply
3.3V

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.3V

Base Part Number
TSB43AB21

Function
Physical Layer Controller

Power Supplies
1.833.33.3/5V

Temperature Grade
COMMERCIAL

Interface
PCI

Operating Supply Current
33mA

Nominal Supply Current
33mA

uPs/uCs/Peripheral ICs Type
SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

Clock Frequency
24.576MHz

Data Rate
400 Mbps

Protocol
IEEE 1394

Boundary Scan
NO

Low Power Mode
YES

Number of Serial I/Os
1

Standards
IEEE 1394-1995, 1394a-2000, OHCI, Firewire?, i.Link?

Bus Compatibility
PCI

Data Transfer Rate-Max
50 MBps

Height
1.2mm

Length
14mm

Width
14mm

Thickness
1mm

REACH SVHC
No SVHC

Radiation Hardening
No

Download datasheets and manufacturer documentation for TI TSB43AB21APDT.

PCN Packaging:

texasinstruments-lm9833ccvjdnopb-pcnpackaging-6844.pdf

TSB43AB21APDT Overview

The 128-TQFP package contains it. It's packaged in the shape of a Tray. It should be able to operate on a 3.3VV power supply. In it, there are 128 terminations. High efficiency is possible with a supply voltage of 3.3V. It is a member of the TSB43AB21 family of numbers. 128 pins are used for operation. This gadget has a total of SERIAL IO/COMMUNICATION CONTROLLER, SERIAL uPs/uCs/Peripheral IC. The supply current to the gadget is set to 33mA. The clock of the device runs at {0} frequency. The power supply for the component is set to 1.833.33.3/5V. In Bus Controllers this device is self-contained. The part has 1 serial I/Os incorporated. The stable operation is enabled by the maximum operating temperature of 70°C°C. It operates at a minimum working temperature of 0°C degrees Celsius to ensure reliability.

TSB43AB21APDT Features

24.576MHz clock frequency
Bus Controllers subcategory

TSB43AB21APDT Applications

There are a lot of Texas Instruments
TSB43AB21APDT Controllers Interface ICs applications.

Desktop PCs
Notebook PCs
Notebook Docking stations
LAN Servers
PC Motherboards
0 to 10V Dimming Luminaires
Dimmable LED Power Supply
Dimming Control Devices
Commercial LED Lighting
Smart LED Lighting
