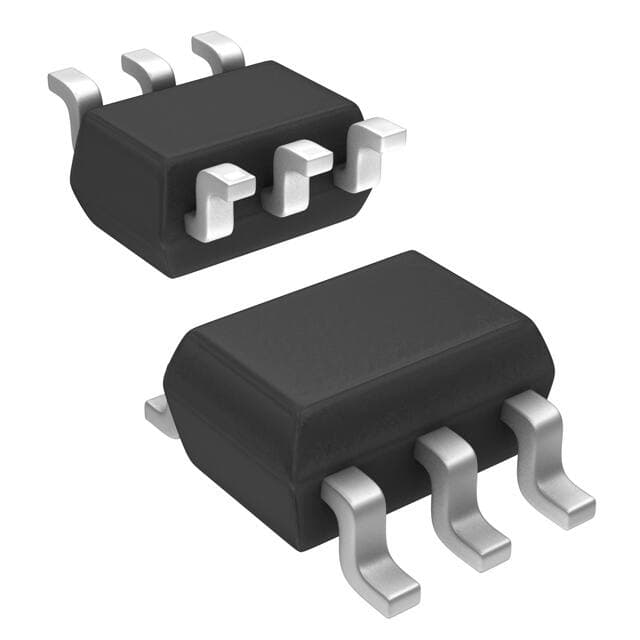

ST TSH122ICT

Manufacturer No:

TSH122ICT

Manufacturer:

Package:

6-TSSOP, SC-88, SOT-363

Description:

6 Terminations 2.25V~5V 6 Pin TSH122 Video Amps Modules 1 Functions Min -40°C Max 85°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TSH122ICT information

ST TSH122ICT technical specifications, attributes, parameters and parts with similar specifications to ST TSH122ICT.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 6 months ago)

Factory Lead Time
12 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
6-TSSOP, SC-88, SOT-363

Number of Pins
6

Packaging
Cut Tape (CT)

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Applications
Buffer

Subcategory
Audio/Video Amplifiers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Base Part Number
TSH122

Pin Count
6

Output Type
Rail-to-Rail

Supply Voltage-Max (Vsup)
5V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
2.25V

Number of Channels
1

Number of Circuits
1

Operating Supply Current
2mA

Nominal Supply Current
2mA

Output Current
75mA

Voltage - Supply, Single/Dual (±)
2.25V~5V

Output Current per Channel
75mA

Supply Type
Single

Bandwidth
9500 kHz

Gain
6 dB

-3db Bandwidth
9.5MHz

Consumer IC Type
VIDEO AMPLIFIER

Length
2mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ST TSH122ICT.

Datasheets:

stmicroelectronics-tsh122ict-datasheets-6086.pdf

stmicroelectronics-tsh122ict-datasheets-9796.pdf

stmicroelectronics-tsh122ict-datasheets-9797.pdf

TSH122ICT Overview

Cut Tape (CT) is how class d amplifier's packaged.This is accessible in the 6-TSSOP, SC-88, SOT-363 package to save space.It is an excellent choice for Buffer due to audio amplifiers high performance.The PCB is mounted using the Surface Mount method.Using 1 circuits enhances audio ic's flexibility.In order to audio amp, use the base part number TSH122.The pin count is 6.There are 6 terminations in digital amplifier.Its -3db bandwidth is 9.5MHz.As audio power amplifier of Audio/Video Amplifiers, this audio power amplifier is included.A supply current of 2mA is required to operate audio amplifier.6 pins are used to construct amplifier ic.A temperature of less than 85°C should be used for operation.The operating temperature should be at least -40°C.Currently, there are 1 channels available.This amplifier has a consumer IC type of VIDEO AMPLIFIER.The mounting method is Surface Mount.Normally, the supply voltage (Vsup) should be above 2.25V.Vsup is set to 5V as the maximum supply voltage.A 75mA output current is used in this scenario.During use, 3V is provided as a supply voltage.As of now, it has a supply type of Single.

TSH122ICT Features

Audio/Video Amplifiers subcategory
6 pins
1 channels

TSH122ICT Applications

There are a lot of STMicroelectronics
TSH122ICT Video Amps and Modules applications.

Microphone Preamplifiers
Analog and Digital Mixing Consoles
Broadcast Studio Equipment
Audio Test And Measurement
High-End A/V Receivers
Automotive
Car Audio
Premium Audio
External Audio Amplifiers
Body Control Modules
