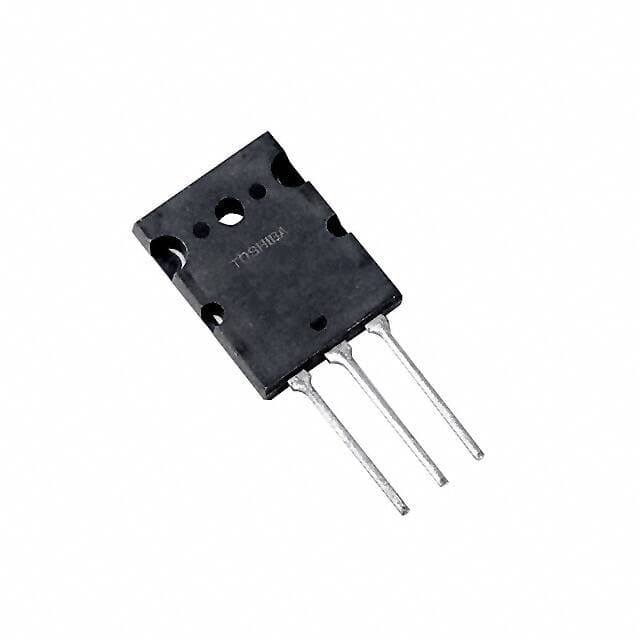

TOSHIBA TTC5200(Q)

Manufacturer No:

TTC5200(Q)

Manufacturer:

TOSHIBA

Package:

TO-3PL

Description:

NPN 150°C TJ 5?A ICBO 1 Elements TO-3PL Tray Through Hole

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TTC5200(Q) information

TOSHIBA TTC5200(Q) technical specifications, attributes, parameters and parts with similar specifications to TOSHIBA TTC5200(Q).

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-3PL

Number of Pins
3

Operating Temperature
150°C TJ

Packaging
Tray

Published
2009

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Power Dissipation
150W

Frequency
30MHz

Number of Elements
1

Element Configuration
Single

Power Dissipation
150W

Gain Bandwidth Product
30MHz

Transistor Type
NPN

Collector Emitter Voltage (VCEO)
230V

Max Collector Current
15A

DC Current Gain (hFE) (Min) @ Ic, Vce
80 @ 1A 5V

Current - Collector Cutoff (Max)
5?A ICBO

Vce Saturation (Max) @ Ib, Ic
3V @ 800mA, 8A

Collector Emitter Breakdown Voltage
230V

Collector Emitter Saturation Voltage
3V

Emitter Base Voltage (VEBO)
5V

hFE Min
80

Height
26mm

Length
20.5mm

Width
5.2mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TOSHIBA TTC5200(Q).

TTC5200(Q) Overview

As the DC current gain is the ratio of the collector current to the base current, for this device the DC current gain is 80 @ 1A 5V.Single BJT transistor has a collector emSingle BJT transistorter saturation voltage of 3V, which allows maximum flexibilSingle BJT transistory in design.As a result of vce saturation, Ic reaches its maximum value (saturated), and vce saturation(Max) is 3V @ 800mA, 8A.Single BJT transistor is possible to achieve a high level of efficiency by maintaining the emSingle BJT transistorter base voltage at 5V.During maximum operation, collector current can be as low as 15A volts.

TTC5200(Q) Features

the DC current gain for this device is 80 @ 1A 5V
a collector emitter saturation voltage of 3V
the vce saturation(Max) is 3V @ 800mA, 8A
the emitter base voltage is kept at 5V

TTC5200(Q) Applications

There are a lot of Toshiba Semiconductor and Storage
TTC5200(Q) applications of single BJT transistors.

Inverter
Interface
Driver
Muting
