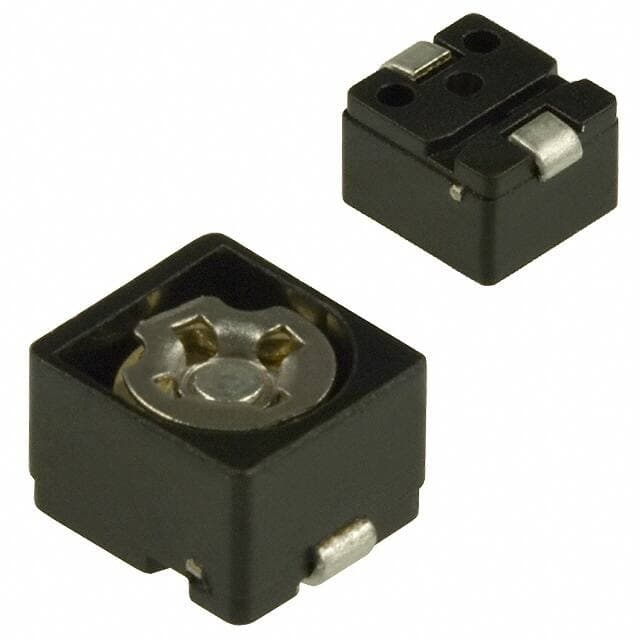

MURATA TZB4R500AA10R00

Manufacturer No:

TZB4R500AA10R00

Manufacturer:

MURATA

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TZB4R500AA10R00 information

MURATA TZB4R500AA10R00 technical specifications, attributes, parameters and parts with similar specifications to MURATA TZB4R500AA10R00.

Type
Parameter

Lifecycle Status
TO BE DISCONTINUED (Last Updated: 4 weeks ago)

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
B

Terminal Shape
WRAPAROUND

Dielectric Material
Ceramic

Operating Temperature
-25°C~85°C

Packaging
Tape & Reel (TR)

Series
TZB4

Size / Dimension
0.177Lx0.157W 4.50mmx4.00mm

Tolerance
100%

JESD-609 Code
e3

Feature
General Purpose

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
SMD/SMT

ECCN Code
EAR99

Temperature Coefficient
300 ppm/°C

Terminal Finish
Tin (Sn)

Additional Feature
PERCENTAGE TOLERANCE ON C_MAX IS 0/+100

HTS Code
8532.30.00.10

Capacitance
7pF

Voltage - Rated DC
50V

Depth
4.5mm

Size Code
2016

Voltage
50V

Q @ Freq
300 @ 1MHz

Adjustment Type
Top

Capacitance Range
7pF~50pF

Adjuster Orientation
VERTICAL

Height
3mm

Height Seated (Max)
0.126 3.20mm

Width
4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for MURATA TZB4R500AA10R00.

Description: The Murata TZB4R500AA10R00 is a SMD trimmer capacitor with a capacitance range of 7-50pF and a rated voltage of 50V. It is designed for use in a wide range of applications, including RF circuits, oscillators, filters, and impedance matching.

Features:
- Capacitance range of 7-50pF
- Rated voltage of 50V
- SMD package
- High stability and reliability
- Low temperature coefficient
- Low ESR
- High Q factor

Applications:
- RF circuits
- Oscillators
- Filters
- Impedance matching
- Tuning circuits
- Voltage dividers
- Signal processing
