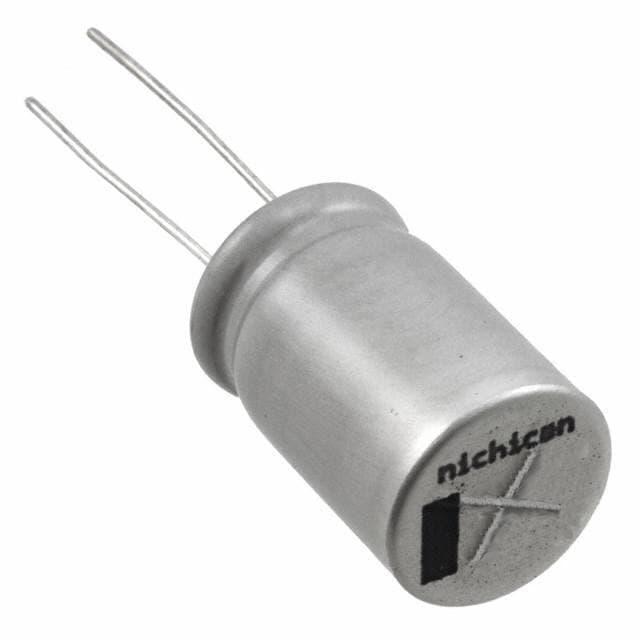

NICHICON UBX2V100MHL

Manufacturer No:

UBX2V100MHL

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

UBX 10?F Capacitor ±20% Bulk Through Hole 120mA 0.492Dia 12.50mm -25°C~150°C Polar 5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UBX2V100MHL information

NICHICON UBX2V100MHL technical specifications, attributes, parameters and parts with similar specifications to NICHICON UBX2V100MHL.

Type
Parameter

Factory Lead Time
18 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Terminal Shape
WIRE

Dielectric Material
ALUMINUM (WET)

Operating Temperature
-25°C~150°C

Packaging
Bulk

Series
UBX

Published
2015

Size / Dimension
0.492Dia 12.50mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
Automotive

HTS Code
8532.22.00

Capacitance
10?F

Voltage - Rated DC
350V

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.197 5.00mm

Lead Diameter
600 ?m

Voltage
350V

Lifetime @ Temp
1000 Hrs @ 150°C

Leakage Current
0.24mA

Ripple Current
120mA

Polarization
Polar

Life (Hours)
1000 hours

Ripple Current @ Low Frequency
120mA @ 120Hz

Ripple Current @ High Frequency
216mA @ 100kHz

Dissipation Factor
0.24 %

Lead/Base Style
Straight

Diameter
12.5mm

Height
20mm

Height Seated (Max)
0.846 21.50mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON UBX2V100MHL.

Datasheets:

nichicon-ubx2v100mhl-datasheets-0869.pdf

UBX2V100MHL Overview

As far as the ripple current is concerned, it is 216mA @ 100kHz at full charge.As far as the ripple current is concerned, it is 120mA @ 120Hz at the lowest charge.The height seated (Max) should be kept below 0.846 21.50mm.It operates from a 0.24 % dissipation factor.This capacitor operates from a voltage - Rated DC of 350V.The operating temperature should be maintained at -25°C~150°C for high efficiency.

UBX2V100MHL Features

the ripple current is 216mA @ 100kHz.
the ripple current is 120mA @ 120Hz.
a dissipation factor of 0.24 %
voltage - Rated DC of 350V
an operating temperature of -25°C~150°C

UBX2V100MHL Applications

There are a lot of Nichicon
UBX2V100MHL applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
