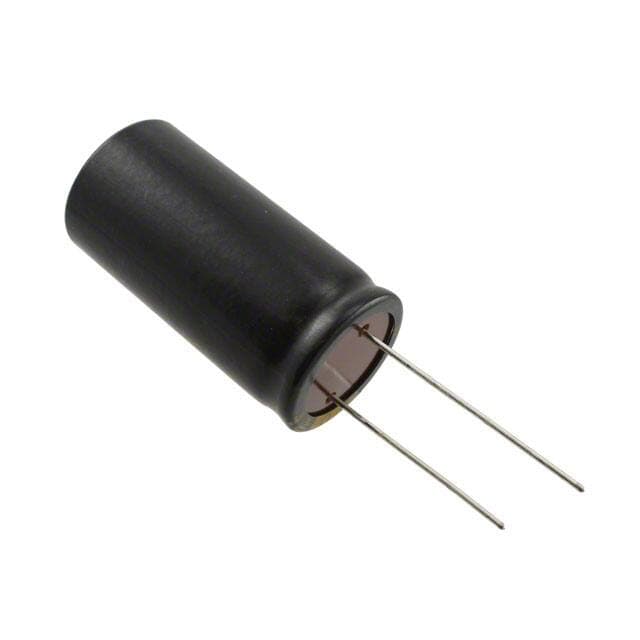

NICHICON UKW1E223MRD

Manufacturer No:

UKW1E223MRD

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

UKW 22000μF Capacitor ±20% Bulk Through Hole 4.5A 0.984Dia 25.00mm -40°C~85°C Polar 12.4968mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UKW1E223MRD information

NICHICON UKW1E223MRD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UKW1E223MRD.

Type
Parameter

Factory Lead Time
19 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Terminal Shape
WIRE

Dielectric Material
ALUMINUM (WET)

Operating Temperature
-40°C~85°C

Packaging
Bulk

Series
UKW

Published
2009

Size / Dimension
0.984Dia 25.00mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
Audio

HTS Code
8532.22.00

Capacitance
22000μF

Voltage - Rated DC
25V

Lead Pitch
12.4968mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.492 12.50mm

Lifetime @ Temp
2000 Hrs @ 85°C

Leakage Current
16.5mA

Ripple Current
4.5A

Polarization
Polar

Life (Hours)
2000 hours

Tan Delta
0.58

Ripple Current @ Low Frequency
4.5A @ 120Hz

Ripple Current @ High Frequency
5.175A @ 10kHz

Dissipation Factor
0.16 %

Lead/Base Style
Straight

Diameter
25mm

Height
50mm

Height Seated (Max)
1.969 50.00mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON UKW1E223MRD.

UKW1E223MRD Overview

As far as the ripple current is concerned, it is 5.175A @ 10kHz at full charge.As far as the ripple current is concerned, it is 4.5A @ 120Hz at the lowest charge.The height seated (Max) should be kept below 1.969 50.00mm.It operates from a 0.16 % dissipation factor.This capacitor operates from a voltage - Rated DC of 25V.The operating temperature should be maintained at -40°C~85°C for high efficiency.

UKW1E223MRD Features

the ripple current is 5.175A @ 10kHz.
the ripple current is 4.5A @ 120Hz.
a dissipation factor of 0.16 %
voltage - Rated DC of 25V
an operating temperature of -40°C~85°C

UKW1E223MRD Applications

There are a lot of Nichicon
UKW1E223MRD applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
