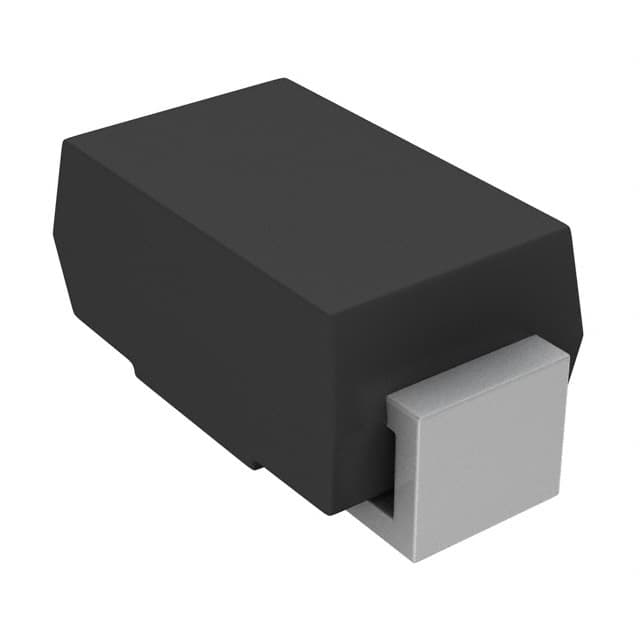

VISHAY US1K-E3/61T
VISHAY US1K-E3/61T

VISHAY US1K-E3/61T

Manufacturer No:

US1K-E3/61T

Manufacturer:

VISHAY

Package:

DO-214AC, SMA

Description:

Standard Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 1.7V @ 1A -55°C~150°C 10?A @ 800V 2-Termination Tape & Reel (TR) DO-214AC, SMA Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

US1K-E3/61T information

VISHAY US1K-E3/61T technical specifications, attributes, parameters and parts with similar specifications to VISHAY US1K-E3/61T.

  • Type
  • Parameter
  • Factory Lead Time
  • 11 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • DO-214AC, SMA
  • Number of Pins
  • 2
  • Diode Element Material
  • SILICON
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2006
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -55°C
  • Additional Feature
  • FREE WHEELING DIODE
  • HTS Code
  • 8541.10.00.80
  • Capacitance
  • 10pF
  • Subcategory
  • Rectifier Diodes
  • Voltage - Rated DC
  • 800V
  • Terminal Position
  • DUAL
  • Terminal Form
  • C BEND
  • Current Rating
  • 1A
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Base Part Number
  • US1K
  • Pin Count
  • 2
  • Number of Elements
  • 1
  • Element Configuration
  • Single
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Standard
  • Current - Reverse Leakage @ Vr
  • 10?A @ 800V
  • Output Current
  • 1A
  • Voltage - Forward (Vf) (Max) @ If
  • 1.7V @ 1A
  • Forward Current
  • 1A
  • Operating Temperature - Junction
  • -55°C~150°C
  • Max Surge Current
  • 30A
  • Forward Voltage
  • 1.7V
  • Max Reverse Voltage (DC)
  • 800V
  • Average Rectified Current
  • 1A
  • Reverse Recovery Time
  • 75 ns
  • Peak Reverse Current
  • 10?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 800V
  • Capacitance @ Vr, F
  • 10pF @ 4V 1MHz
  • Peak Non-Repetitive Surge Current
  • 30A
  • Reverse Voltage
  • 800V

Download datasheets and manufacturer documentation for VISHAY US1K-E3/61T.

Datasheets:

Other Related Documents:

RohsStatement:

US1K-E3/61T Overview


An appropriate reverse voltage is 800V.Devices with this rating have an average rectified current of 1A volts.1A is the maximum value of forward current.The fuse's current rating is 1A, which is the maximum current the fuse can handle for an indefinite time without deteriorating too much.There can be no surge current above 30A.In some cases, the device could display a value of 10pF depending on the capacitance.Using the data chart, the peak reverse is 10?A in the datasheets.

US1K-E3/61T Features


an average rectified current of 1A volts
a current rating of 1A
the peak reverse is 10?A


US1K-E3/61T Applications


There are a lot of Vishay Semiconductor Diodes Division
US1K-E3/61T applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
