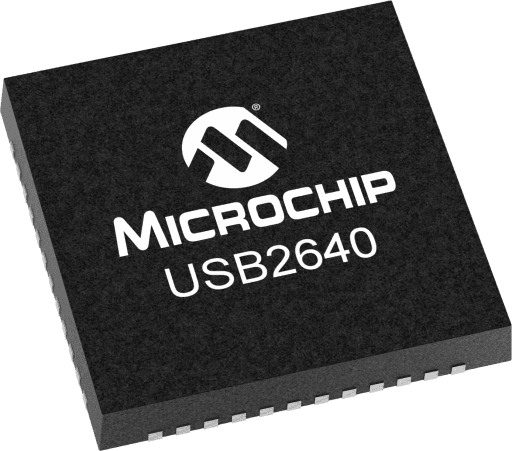

Microchip USB2640I-HZH-02
Microchip USB2640I-HZH-02

Microchip USB2640I-HZH-02

Manufacturer No:

USB2640I-HZH-02

Manufacturer:

Microchip

Package:

48-VFQFN Exposed Pad

Description:

The USB2640 combines an interface between a USB host and Flash media card with a versatile, cost-effective and power-efficient 2-port Hi-Speed USB 2.0 hub controller.

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

USB2640I-HZH-02 information

Microchip USB2640I-HZH-02 technical specifications, attributes, parameters and parts with similar specifications to Microchip USB2640I-HZH-02.

  • Type
  • Parameter
  • Upstream Port
  • USB 2.0
  • USB Speed
  • Hi Speed
  • Down stream Ports
  • SD, MMC, MS, xD
  • MCU Interface
  • USB
  • Tx Buffer Size
  • 3K
  • Rx Buffer Size
  • 3K
  • GPIOs
  • 1
  • OpVoltage
  • 3.3
  • MGMT I/F
  • No
  • ROM I/F
  • I2C
  • UART
  • No
  • CompactFlash
  • No
  • Secure Digita lMMcards
  • 1
  • SD MM CS DIO Ports
  • 1
  • Memory Stick
  • Yes
  • xD Picture Card
  • Yes
  • Logical Unit Num
  • 1
  • Temp Range Min
  • -40
  • Temp Range Max
  • 85

Download datasheets and manufacturer documentation for Microchip USB2640I-HZH-02.

Brochures:

Design Checklist:

Errata:

Data Sheets:

Application Notes:

Microchip's USB264x/2660 family combines an ultra-fast interface between a USB host and today's most popular Flash media cards with a versatile, cost-effective and power-efficient 2-port Hi-Speed USB 2.0 hub controller. USB264x/2660 is designed for applications that demand low power, small footprint and reduced BOM without compromising performance or features.

Offering a high level of USB 2.0 compliance and interoperability, the USB264x/2660 family allows system designers the flexibility of independent access to a wide selection of Flash media readers and also provides additional downstream USB access ports.

Each device in the USB264x/2660 family consists of USB 2.0 device transceivers with 2-port hub functionality, a fast 8051 microprocessor and Memory Stick® (MS), xD-Picture Card™* (xD) and Secure Digital (SD) controllers in a single, fully-integrated chip. The USB2660 has an additional SD/MMC/eMMC port. This family of devices offers USB expansion ports as well as a Flash card media reader/writer capable of ultra high-performance operation. Average sustained transfer rates exceeding 35MB/s are possible if the media and host can support those rates.**

*Microchip makes the following part-numbered device available for purchase only by customers who are xD-Picture Card licensees: USB2640, USB2660. By purchasing or ordering any of such devices, Buyer represents, warrants, and agrees that Buyer is a duly licensed Licensee under an xD-Picture Card™ License Agreement with Fuji Photo Film Co., Ltd., Olympus Optical Co., Ltd., and Toshiba Corporation; and that Buyer will maintain in effect such xD-Picture Card license and will give Microchip reasonable advance notice of any termination or expiration of such xD-Picture Card license, but in no event less than five days advance notice. Microchip may discontinue making such devices available for purchase by Buyer and/or discontinue further deliveries of such devices if such xD-Picture Card license shall expire, terminate, or cease to be in force, or if Buyer is or becomes in default of such xD-Picture Card license.

**Results are based on actual measurements on evaluation platforms developed by Microchip, and are meant only as a general guideline, not as a guarantee. Actual customer results may vary based on a number of factors, including board layout and measurement technique.


Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.



  • Ultra-fast Flash media reader/writer with two exposed downstream ports for external peripheral expansion
  • Optimizes footprint with an approximate 40% board space reduction compared to prior Microchip discrete devices
  • Reduces power consumption by approximately 30% versus alternative Microchip discrete solutions
  • Supports MultiMediaCard™ (MMC)/SD, MS/MS-Pro™/MS-Pro-HG and xD cards, among others
  • USB2660 supports additional MMC/eMMC or SD Card ports
  • Internal code configurable using an external I
  • Configurable software architecture supports customization for customer-specific applications and field upgradeable firmware
  • Ability to place the device away from the main board to deliver USB connectivity where it is needed within the system
  • 7x7mm,48-pin QFN package (USB264x family) and 9x9mm, 64-pin QFN package (USB2660); both and RoHS-compliant
  • Industrial temperature range (-40°C to +85°C) options available
      • Applications:
    • Set-top Boxes
    • Printers
    • Desktop and Mobile PCs
    • Consumer Audio/Visual (A/V)
    • Digital TVs
    • Monitors
    • Media Players/Viewers
    • Gaming Consoles
    • Digital Photo Frames
