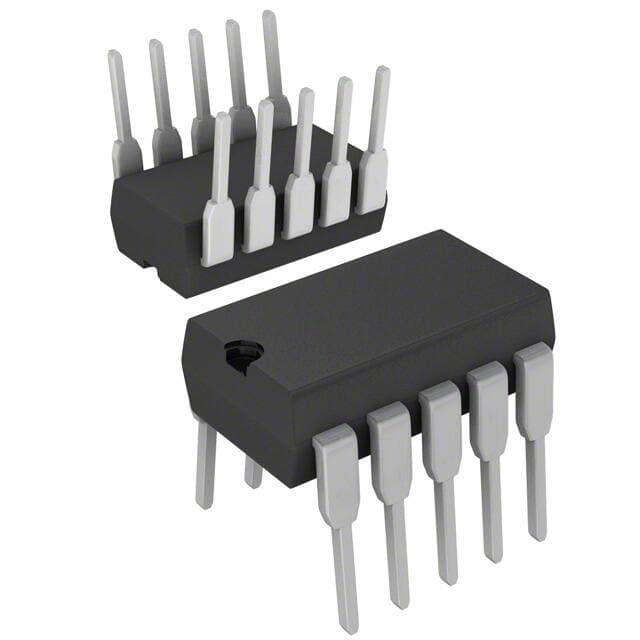

ST VIPER37HE

Manufacturer No:

VIPER37HE

Manufacturer:

Package:

10-SDIP (0.300, 7.62mm)

Description:

10 Terminations 8.5V~23.5V 10 Pin VIPER37 AC to DC power converter VIPer? plus Series 1 Outputs 115kHz

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

VIPER37HE information

ST VIPER37HE technical specifications, attributes, parameters and parts with similar specifications to ST VIPER37HE.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 7 months ago)

Factory Lead Time
12 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
10-SDIP (0.300, 7.62mm)

Number of Pins
10

Operating Temperature
-40°C~150°C TJ

Packaging
Tube

Series
VIPer? plus

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
10

ECCN Code
EAR99

Power (Watts)
20W

Subcategory
Switching Regulator or Controllers

Power Rating
25W

Max Power Dissipation
25W

Terminal Position
DUAL

Base Part Number
VIPER37

Number of Outputs
1

Analog IC - Other Type
SWITCHING REGULATOR

Operating Supply Current
3.5mA

Voltage - Supply (Vcc/Vdd)
8.5V~23.5V

Max Supply Current
3.5mA

Topology
Flyback

Min Input Voltage
85V

Control Mode
CURRENT-MODE

Frequency - Switching
115kHz

Max Input Voltage
265V

Internal Switch(s)
Yes

Fault Protection
Current Limiting, Over Temperature, Over Voltage

Max Duty Cycle
80 %

Output Isolation
Isolated

Voltage - Breakdown
800V

Voltage - Start Up
14V

Min Input Voltage (AC)
85V

Max Input Voltage (AC)
265V

Length
10.16mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ST VIPER37HE.

Datasheets:

stmicroelectronics-viper37he-datasheets-7806.pdf

PCN Assembly/Origin:

stmicroelectronics-l6561-pcnassemblyorigin-9377.pdf

VIPER37HE Overview

In the package 10-SDIP (0.300, 7.62mm) , the ac to dc converter is embedded.The AC/DC power converter type is Tube .It is mounted in the way of Through Hole .For the ac dc converter to perform at its best, it should be operated at a temperature of -40°C~150°C TJ °C.Analog ICs of type SWITCHING REGULATOR are used in this AC DC converter.In this AC to DC transformer, the switching frequency is 115kHz .Vcc/Vdd can be used within the range of 8.5V~23.5V supply voltage.As a result, it has had 10 terminations.A ac/dc converter with 10 pins is available.It are possible to mount thare ac dc converters by Through Hole .It belongs to the family of VIPer? plus manufacturers.If you select the VIPER37 family, you will be able to search for similar acdc converters.There are 1 outputs to be processed.AC to DC converter is included in Switching Regulator or Controllers .You can read the standard for REACH SVHC at: No SVHC .The AC to DC converter can be powered under 265V voltage.Coverters generate 25W in terms of output power.Input voltages less than 85V volts can be used to operate the AC to DC inverter.There is a maximum current limAC to DC converter of 3.5mA for the supply.AC to DC power converters should be able to accept input voltages (AC) below 265V .

VIPER37HE Features

Packaged with 10-SDIP (0.300, 7.62mm)
Switching Frequency at 115kHz
With 10 pins

VIPER37HE Applications

There are a lot of STMicroelectronics
VIPER37HE AC DC Converters applications.

Adaptors for Portable Media Player
Adaptors for DSCs
Set-top boxes
DVD players
Records
Linear Adapter Replacements
Chargers for cell/cordless phones
PDAs
MP3
Portable audio
