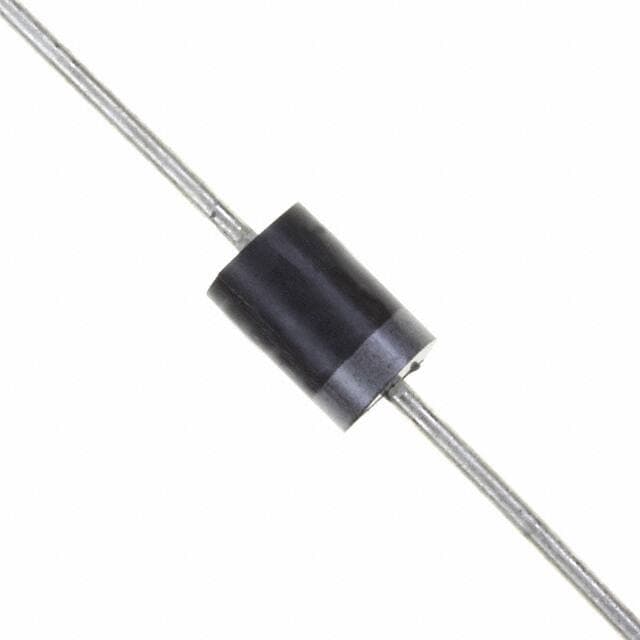

VISHAY VS-50SQ100
VISHAY VS-50SQ100

VISHAY VS-50SQ100

Manufacturer No:

VS-50SQ100

Manufacturer:

VISHAY

Package:

DO-204AR, Axial

Description:

Schottky Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 660mV @ 5A -55°C~175°C 550?A @ 100V 2-Termination Bulk DO-204AR, Axial Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

VS-50SQ100 information

VISHAY VS-50SQ100 technical specifications, attributes, parameters and parts with similar specifications to VISHAY VS-50SQ100.

  • Type
  • Parameter
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • DO-204AR, Axial
  • Number of Pins
  • 2
  • Diode Element Material
  • SILICON
  • Packaging
  • Bulk
  • Published
  • 2014
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Max Operating Temperature
  • 175°C
  • Min Operating Temperature
  • -55°C
  • Additional Feature
  • FREE WHEELING DIODE
  • HTS Code
  • 8541.10.00.80
  • Subcategory
  • Rectifier Diodes
  • Terminal Form
  • WIRE
  • Base Part Number
  • 50SQ100
  • Number of Elements
  • 1
  • Element Configuration
  • Single
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Schottky
  • Current - Reverse Leakage @ Vr
  • 550?A @ 100V
  • Voltage - Forward (Vf) (Max) @ If
  • 660mV @ 5A
  • Forward Current
  • 5A
  • Max Reverse Leakage Current
  • 550?A
  • Operating Temperature - Junction
  • -55°C~175°C
  • Max Surge Current
  • 1.9kA
  • Output Current-Max
  • 5A
  • Application
  • GENERAL PURPOSE
  • Forward Voltage
  • 770mV
  • Max Reverse Voltage (DC)
  • 100V
  • Average Rectified Current
  • 5A
  • Number of Phases
  • 1
  • Peak Reverse Current
  • 550?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 100V
  • Peak Non-Repetitive Surge Current
  • 1.9kA
  • Max Forward Surge Current (Ifsm)
  • 1.9kA
  • Natural Thermal Resistance
  • 44 °C/W
  • Diameter
  • 6.35mm
  • Height
  • 6.35mm
  • Length
  • 9.4996mm
  • Width
  • 6.35mm
  • REACH SVHC
  • Unknown
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for VISHAY VS-50SQ100.

Datasheets:

RohsStatement:

VS-50SQ100 Overview


A reverse leakage current of 550?A volts can be generated by this device.A rectified current of 5A volts is averaged for this device.A value of 5A is the maximum forward current that can be allowed.As a heat property, thermal resistance is a measurement of a temperature difference that inhibits heat flow from an object or material, and it is 44 °C/W at natural temperatures.1.9kA is the maximum value of surge current.Phase diode rectifier is possible to produce a maximum output current by setting the output current to 5A.As indicated by the data chart in the datasheets, the peak reverse is 550?A.

VS-50SQ100 Features


a maximal reverse leakage current of 550?A volts
an average rectified current of 5A volts
5A is the maximum value
the peak reverse is 550?A


VS-50SQ100 Applications


There are a lot of Vishay Semiconductor Diodes Division
VS-50SQ100 applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
