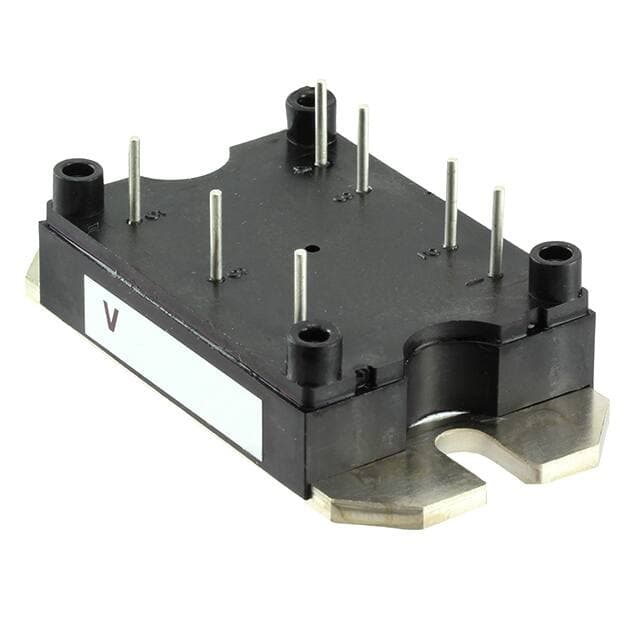

VISHAY VS-70MT160PBPBF
VISHAY VS-70MT160PBPBF

VISHAY VS-70MT160PBPBF

Manufacturer No:

VS-70MT160PBPBF

Manufacturer:

VISHAY

Package:

MTK

Description:

Three Phase Bridge Rectifier Standard Chassis Mount -40°C~150°C TJ 7-Termination 3-Phase MTK Tube

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

VS-70MT160PBPBF information

VISHAY VS-70MT160PBPBF technical specifications, attributes, parameters and parts with similar specifications to VISHAY VS-70MT160PBPBF.

  • Type
  • Parameter
  • Factory Lead Time
  • 37 Weeks
  • Mount
  • Chassis Mount, Screw
  • Mounting Type
  • Chassis Mount
  • Package / Case
  • MTK
  • Number of Pins
  • 7
  • Weight
  • 65.000013g
  • Diode Element Material
  • SILICON
  • Operating Temperature
  • -40°C~150°C TJ
  • Packaging
  • Tube
  • Published
  • 2002
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 7
  • ECCN Code
  • EAR99
  • Additional Feature
  • UL RECOGNIZED
  • Technology
  • Standard
  • Terminal Position
  • UPPER
  • Terminal Form
  • PIN/PEG
  • Current Rating
  • 75A
  • Number of Elements
  • 1
  • Element Configuration
  • Single
  • Diode Type
  • Three Phase
  • Case Connection
  • ISOLATED
  • Forward Current
  • 75A
  • Forward Voltage
  • 1.45V
  • Number of Phases
  • 3
  • Peak Reverse Current
  • 5mA
  • Max Repetitive Reverse Voltage (Vrrm)
  • 1.6kV
  • Peak Non-Repetitive Surge Current
  • 398A
  • Max Forward Surge Current (Ifsm)
  • 398A
  • Height
  • 16mm
  • Length
  • 63.5mm
  • Width
  • 32.5mm
  • REACH SVHC
  • Unknown
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for VISHAY VS-70MT160PBPBF.

Datasheets:

RohsStatement:

VS-70MT160PBPBF Overview


There is no forward voltage applied to this device.A MTK package electronic component is basically a type of electronic component.Mounting method of the device is Chassis Mount, Screw.Keeping the temperature at -40°C~150°C TJ ensures normal operation.Current surges should be monitored and not exceeded.Powering this device requires a peak reverse voltage of 5mA.

VS-70MT160PBPBF Features


75A forward voltage
forward voltage of 75A
MTK package
operating at a temperature of -40°C~150°C TJ
peak reverse voltage of 5mA
a reverse voltage peak of 5mA


VS-70MT160PBPBF Applications


There are a lot of Vishay Semiconductor Diodes Division
VS-70MT160PBPBF applications of bridge rectifiers.


  • High forward surge current capability
  • Low thermal resistance
  • Extremely robust construction
  • Fuse-in-glass diodes design
  • Electrically isolated aluminum case
  • Motor controls ? Low Voltage and Medium Voltage converters
  • SCR power bridges for solid state starters
  • SCR and diode based input rectifiers
  • Crowbar systems for motor drives
  • Wind power (alternative energy) ? Converters available as diodes, SCRs or IGBTs
