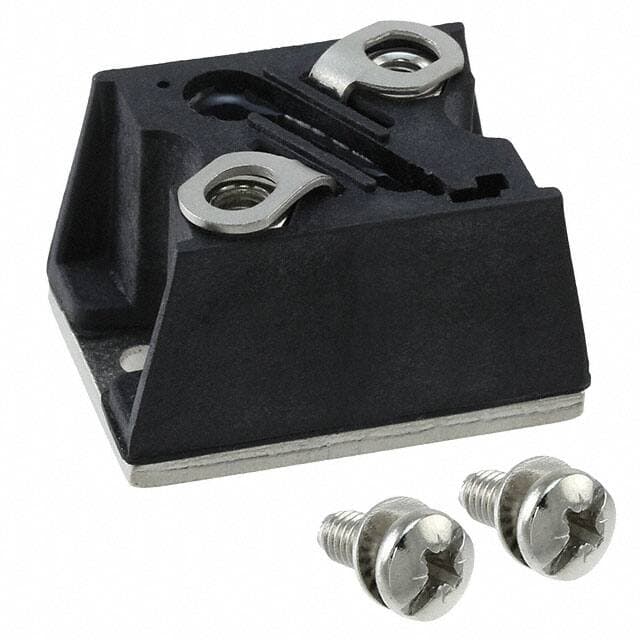

Manufacturer No:

VS-T70HF40

Manufacturer:

VISHAY

Package:

D-55 T-Module

Description:

Standard Diode Rectifier Standard Recovery >500ns, > 200mA (Io) 15mA @ 400V 2-Termination Bulk D-55 T-Module Chassis Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

VS-T70HF40 information

VISHAY VS-T70HF40 technical specifications, attributes, parameters and parts with similar specifications to VISHAY VS-T70HF40.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Mount
  • Chassis Mount, Panel, Screw
  • Mounting Type
  • Chassis Mount
  • Package / Case
  • D-55 T-Module
  • Number of Pins
  • 2
  • Diode Element Material
  • SILICON
  • Packaging
  • Bulk
  • Published
  • 1997
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -40°C
  • Additional Feature
  • UL APPROVED
  • HTS Code
  • 8541.10.00.80
  • Terminal Position
  • UPPER
  • Terminal Form
  • UNSPECIFIED
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Current Rating
  • 70A
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Number of Elements
  • 1
  • Element Configuration
  • Single
  • Speed
  • Standard Recovery >500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr
  • 15mA @ 400V
  • Case Connection
  • ISOLATED
  • Forward Current
  • 70A
  • Max Surge Current
  • 1.25kA
  • Application
  • HIGH VOLTAGE POWER
  • Forward Voltage
  • 1.35V
  • Max Reverse Voltage (DC)
  • 400V
  • Average Rectified Current
  • 70A
  • Number of Phases
  • 1
  • Peak Reverse Current
  • 15mA
  • Max Repetitive Reverse Voltage (Vrrm)
  • 400V
  • Peak Non-Repetitive Surge Current
  • 1.25kA
  • Reverse Voltage
  • 400V
  • Max Forward Surge Current (Ifsm)
  • 1.25kA
  • Height
  • 25mm
  • Length
  • 41mm
  • Width
  • 27mm
  • REACH SVHC
  • Unknown
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for VISHAY VS-T70HF40.

Datasheets:

RohsStatement:

VS-T70HF40 Overview


The reverse voltage should be 400V.In this device, there is an average rectified current of 70A volts.Forward current may not exceed 70A.70A is its maximum current rating, which is the maximum current that a fuse can handle without deteriorating.This is the maximum amount of 1.25kA surge current that can be used.As the data chart indicates, the peak reverse is 15mA.

VS-T70HF40 Features


an average rectified current of 70A volts
a current rating of 70A
the peak reverse is 15mA


VS-T70HF40 Applications


There are a lot of Vishay Semiconductor Diodes Division
VS-T70HF40 applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode

User Guide
