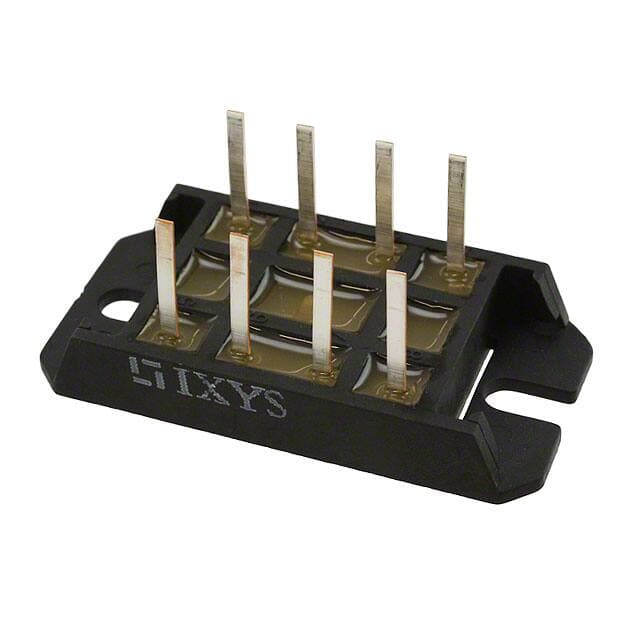

LITTELFUSE VUM33-05N

Manufacturer No:

VUM33-05N

Manufacturer:

LITTELFUSE

Package:

V1-B-Pack

Description:

Single Phase (PFC Module) Bridge Rectifier Standard Chassis Mount -40°C~150°C TJ 1.5mA @ 600V 1.5V @ 20A 8-Termination V1-B-Pack Bulk

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

VUM33-05N information

LITTELFUSE VUM33-05N technical specifications, attributes, parameters and parts with similar specifications to LITTELFUSE VUM33-05N.

Type
Parameter

Factory Lead Time
6 Weeks

Mount
Chassis Mount

Mounting Type
Chassis Mount

Package / Case
V1-B-Pack

Number of Pins
8

Transistor Element Material
SILICON

Operating Temperature
-40°C~150°C TJ

Packaging
Bulk

Published
2007

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

Terminal Finish
SILVER

Additional Feature
BRIDGE RECTIFIER AVAILABLE

Technology
Standard

Terminal Position
UPPER

Terminal Form
UNSPECIFIED

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
VUM

Qualification Status
Not Qualified

Number of Elements
1

Diode Type
Single Phase (PFC Module)

Current - Reverse Leakage @ Vr
1.5mA @ 600V

Operating Mode
ENHANCEMENT MODE

Voltage - Forward (Vf) (Max) @ If
1.5V @ 20A

Case Connection
ISOLATED

Transistor Application
SWITCHING

Current - Average Rectified (Io)
54A

Forward Voltage
1.75V

Polarity/Channel Type
N-CHANNEL

Average Rectified Current
47A

Peak Reverse Current
250?A

Max Repetitive Reverse Voltage (Vrrm)
500V

Drain-source On Resistance-Max
0.12Ohm

Pulsed Drain Current-Max (IDM)
130A

Voltage - Peak Reverse (Max)
600V

Power Dissipation Ambient-Max
595W

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for LITTELFUSE VUM33-05N.

Datasheets:

ixys-vum3305n-datasheets-5511.pdf

VUM33-05N Overview

There are a number of related parts that can be identified using the base part number VUM.Basically, rectifier is a type of electronic component that is available in a V1-B-Pack package.The mounting method of the device is Chassis Mount.Operating at the temperature of -40°C~150°C TJ ensures its normal operation.There is a peak reverse voltage of 250?A which is used to power this device.
