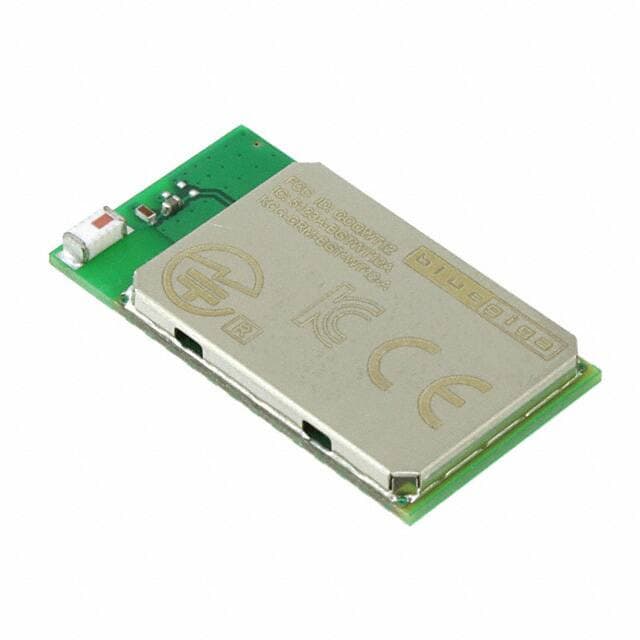

SKYWORKS WT12-A-AI5

Manufacturer No:

WT12-A-AI5

Manufacturer:

SKYWORKS

Package:

Module

Description:

2.4GHz Bluetooth -40°C~85°C 3.1V~3.6V PIO, SPI, UART, USB Tape & Reel (TR) Integrated, Chip 3Mbps 3dBm Bluetooth v2.1 + EDR, Class 2 Module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

WT12-A-AI5 information

SKYWORKS WT12-A-AI5 technical specifications, attributes, parameters and parts with similar specifications to SKYWORKS WT12-A-AI5.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
Module

Number of Pins
31

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Published
2009

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
31

HTS Code
8542.39.00.01

Voltage - Supply
3.1V~3.6V

Terminal Position
UNSPECIFIED

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
1.5mm

Frequency
2.4GHz

Operating Supply Voltage
3.4V

Interface
SPI, UART, USB

Memory Size
8MB Flash

Max Supply Current
60mA

Data Rate
3Mbps

Utilized IC / Part
BlueCore4

Telecom IC Type
TELECOM CIRCUIT

Power - Output
3dBm

RF Family/Standard
Bluetooth

Antenna Type
Integrated, Chip

Serial Interfaces
PIO, SPI, UART, USB

Current - Receiving
70mA

Modulation
DQPSK, GFSK

Sensitivity (dBm)
-86 dBm

Length
25.6mm

Height Seated (Max)
2.6mm

Width
14mm

Radiation Hardening
No

RoHS Status
RoHS Compliant
