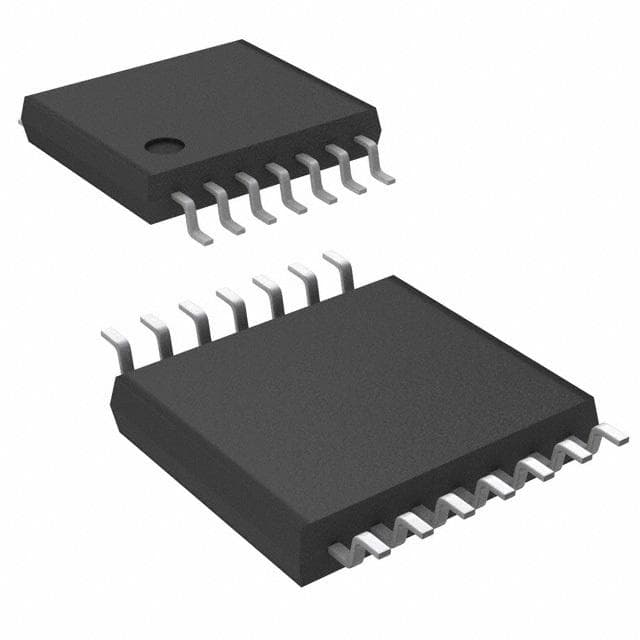

Renesas X9271TV14I

Manufacturer No:

X9271TV14I

Manufacturer:

Renesas

Package:

TSSOP

Description:

14 Terminations 2.7V 14 Pin Digital Potentiometers SPI 256 Positions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

X9271TV14I information

Renesas X9271TV14I technical specifications, attributes, parameters and parts with similar specifications to Renesas X9271TV14I.

Type
Parameter

Mount
Surface Mount

Package / Case
TSSOP

Packaging
Bulk

Published
2005

Tolerance
20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
14

ECCN Code
EAR99

Temperature Coefficient
300 ppm/°C

Resistance
100kOhm

Number of Positions
256

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
NONVOLATILE MEMORY

Subcategory
Digital Potentiometers

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.65mm

Frequency
2.5MHz

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
14

Qualification Status
Not Qualified

Power Supplies
3/5V

Temperature Grade
INDUSTRIAL

Interface
SPI

Number of Circuits
1

Memory Type
Non-Volatile

Converter Type
DIGITAL POTENTIOMETER

Number of Taps
256

Total Resistance
100000Ohm

Resistor Terminal Voltage-Max
2.7V

Length
5mm

Width
4.4mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas X9271TV14I.

Datasheets:

intersil-x9271tv14i-datasheets-5997.pdf

X9271TV14I Overview

TSSOP packages contain it.Non-Volatile marks the beginning of the storage process for this pentometer.The digital potentiometer has 1 embedded circuits.In the Bulk package, it is accessible for securing the digital analogic.This pentometer is protected from overcurrent by 256 taps.The number of positions is 256.There are 14 terminations on this digital potentiometer.You can refer to 1 functions in this programmable potentiometer.According to the diagram, the speed potentiometers's total resistance is 100000Ohm.Powered by 2.7V, it delivers its performance.In the digi devices, there are 14 pins.A flow limit of 100kOhm can be applied.Mounted by Surface Mount.There is a DIGITAL POTENTIOMETER classification for its converter type.The potentiameter is capable of delivering voltage at 3/5V.A maximum 85°C ensures that the digital resistor runs smoothly.In order to maintain reliability, it is operated at a minimum temperature of -40°C.Additional features of this digital potentiometer include: NONVOLATILE MEMORYThis electronic component belongs to the family Digital Potentiometers.With 2.5MHz, it is capable of maintaining high accuracy.

X9271TV14I Features

Available in TSSOP package
1 Circuits

X9271TV14I Applications

There are a lot of Intersil (Renesas Electronics America)
X9271TV14I Digital Potentiometers applications.

Cell phone
Household appliances
Modern office equipment
Industrial control
Medical equipment
Refrigerator
Programmable computer
Power supply
Power meter
Automatic detection of equipment
