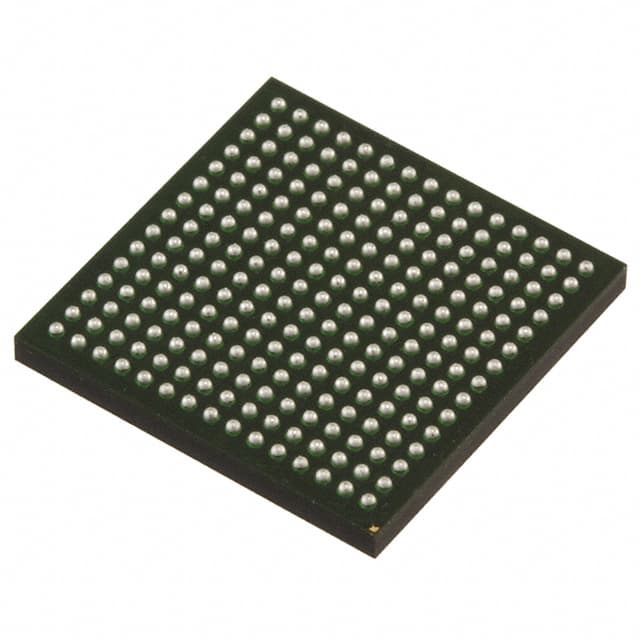

AMD XA7Z010-1CLG225Q

Manufacturer No:

XA7Z010-1CLG225Q

Manufacturer:

AMD

Package:

225-LFBGA, CSPBGA

Description:

225 Terminations -40°C~125°C TJ 225 Pin System On Chip Automotive, AEC-Q100, Zynq®-7000 XA Series 86 I/O

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XA7Z010-1CLG225Q information

AMD XA7Z010-1CLG225Q technical specifications, attributes, parameters and parts with similar specifications to AMD XA7Z010-1CLG225Q.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Plating
Copper, Silver, Tin

Mount
Surface Mount

Package / Case
225-LFBGA, CSPBGA

Number of Pins
225

Operating Temperature
-40°C~125°C TJ

Packaging
Tray

Series
Automotive, AEC-Q100, Zynq®-7000 XA

Published
2010

JESD-609 Code
e1

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
225

ECCN Code
EAR99

Terminal Finish
TIN SILVER COPPER

HTS Code
8542.39.00.01

Subcategory
Other uPs/uCs/Peripheral ICs

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Terminal Pitch
0.8mm

Frequency
667MHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Operating Supply Voltage
1V

Power Supplies
11.8V

Interface
CAN, EBI/EMI, Ethernet, GPIO, I2C, MMC, SD, SDIO, SPI, UART, USART, USB

Number of I/O
86

RAM Size
256KB

uPs/uCs/Peripheral ICs Type
MICROPROCESSOR CIRCUIT

Core Processor
Dual ARM® Cortex®-A9 MPCore? with CoreSight?

Peripherals
DMA

Connectivity
CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG

Architecture
MCU, FPGA

Data Bus Width
32b

Core Architecture
ARM

Primary Attributes
Artix?-7 FPGA, 28K Logic Cells

UV Erasable
N

Length
13mm

Height Seated (Max)
1.5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for AMD XA7Z010-1CLG225Q.

XA7Z010-1CLG225Q Description

The XA Zynq-7000 Automotive family is based on the Xilinx® All Programmable SoC architecture. These products integrate a feature-rich dual-core ARM® Cortex-A9-based processing system (PS) and 28 nm Xilinx programmable logic (PL) in a single device. The ARM Cortex-A9 CPUs are the heart of the PS and also include on-chip memory, external memory interfaces, and a rich set of peripheral connectivity interfaces. This highly integrated, flexible, and the power-optimized solution is ideal for highly computationally intensive and performance-demanding applications. The automotive family focuses on automotive applications and consists of the Z-7010, Z-7020, and Z-7030 devices.

XA7Z010-1CLG225Q Features

Dual-Core ARM Cortex-A9-Based Application Processor Unit

8-Channel DMA Controller

I/O Peripherals and Interfaces

36 Kb Block RAM

Programmable I/O Blocks

Two 12-Bit Analog-to-Digital Converters

Automotive Temperature Range

Serial Transceivers
