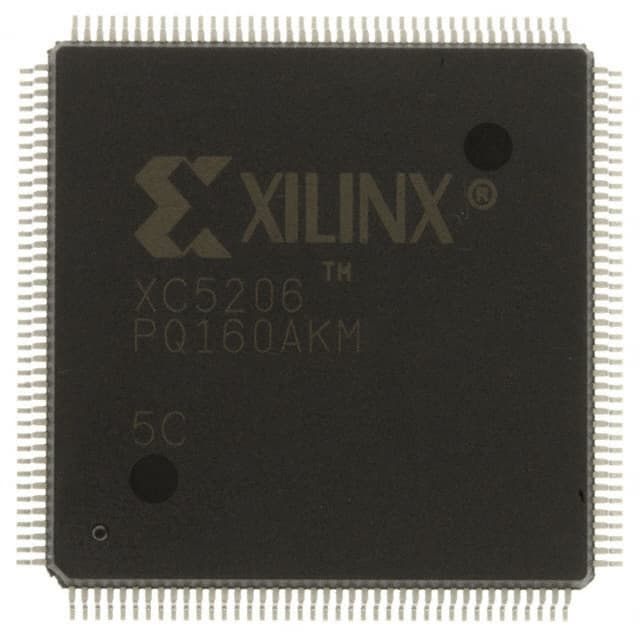

AMD XC5206-5PQ160C
Manufacturer No:
XC5206-5PQ160C
Manufacturer:
Package:
160-BQFP
Description:
4.1mm mm FPGAs XC5200 Series 160-BQFP 0.65mm mm 160
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
XC5206-5PQ160C information
AMD XC5206-5PQ160C technical specifications, attributes, parameters and parts with similar specifications to AMD XC5206-5PQ160C.
- Type
- Parameter
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 160-BQFP
- Number of Pins
- 160
- Operating Temperature
- 0°C~85°C TJ
- Packaging
- Tray
- Series
- XC5200
- Published
- 1999
- JESD-609 Code
- e0
- Pbfree Code
- no
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 160
- Terminal Finish
- Tin/Lead (Sn85Pb15)
- HTS Code
- 8542.39.00.01
- Subcategory
- Field Programmable Gate Arrays
- Technology
- CMOS
- Voltage - Supply
- 4.75V~5.25V
- Terminal Position
- QUAD
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 225
- Supply Voltage
- 5V
- Terminal Pitch
- 0.65mm
- Reach Compliance Code
- not_compliant
- Base Part Number
- XC5206
- Pin Count
- 160
- Number of Outputs
- 133
- Qualification Status
- Not Qualified
- Power Supplies
- 5V
- Number of I/O
- 133
- Clock Frequency
- 83MHz
- Programmable Logic Type
- FIELD PROGRAMMABLE GATE ARRAY
- Number of Logic Elements/Cells
- 784
- Number of Gates
- 10000
- Number of LABs/CLBs
- 196
- Combinatorial Delay of a CLB-Max
- 4.6 ns
- Number of CLBs
- 196
- Number of Logic Cells
- 784
- Number of Equivalent Gates
- 6000
- Length
- 28mm
- Height Seated (Max)
- 4.1mm
- Width
- 28mm
- RoHS Status
- RoHS Compliant
- Lead Free
- Contains Lead
Download datasheets and manufacturer documentation for AMD XC5206-5PQ160C.
XC5206-5PQ160C Overview
As part of the 160-BQFP package, it is included. This kind of FPGA is composed of FIELD PROGRAMMABLE GATE ARRAY. A total of 133 I/Os allow data to be transferred in a more coherent manner. A fundamental building block consists of 784 logic elements/cells. It is powered from a supply voltage of 5V. The Field Programmable Gate Arrays family of FPGA parts includes this part. With a Surface Mount connector, this FPGA module can be attached to the development board. In order to operate it, it requires a voltage supply of 4.75V~5.25V . It is a type of FPGA that belongs to the XC5200 series of FPGAs. Fpga chips is important to maintain the operating temperature wFpga chipshin the range of 0°C~85°C TJ when operating the machine. In this device, there are 133 outputs that can be used. In order to save space, this FPGA model has been contained in Tray. There are a total of 160 terminations. Its base part number XC5206 can be used to find parts that are related to it. There are 160 pins on this device. The FPGA consists of 196 LABs/CLBs. According to its specifications, this FPGA will be able to work fantastically as long as it is mounted in Surface Mount. An external power supply of 5V is required to power the device. The basic building block of this system consists of 10000 gates. There are a total of 160 pins on this device. Typically, it uses a crystal oscillating at 83MHz in order to operate. Its architecture is based on 196 CLBs. As part of the building blocks, it consists of 784 logic cells. 6000 equivalent gates are used in the FPGA implementation.
XC5206-5PQ160C Features
133 I/Os
160 LABs/CLBs
XC5206-5PQ160C Applications
There are a lot of Xilinx Inc.
XC5206-5PQ160C FPGAs applications.
- Bioinformatics
- Device controllers
- Software-defined radio
- Random logic
- ASIC prototyping
- Medical imaging
- Computer hardware emulation
- Integrating multiple SPLDs
- Voice recognition
- Cryptography
