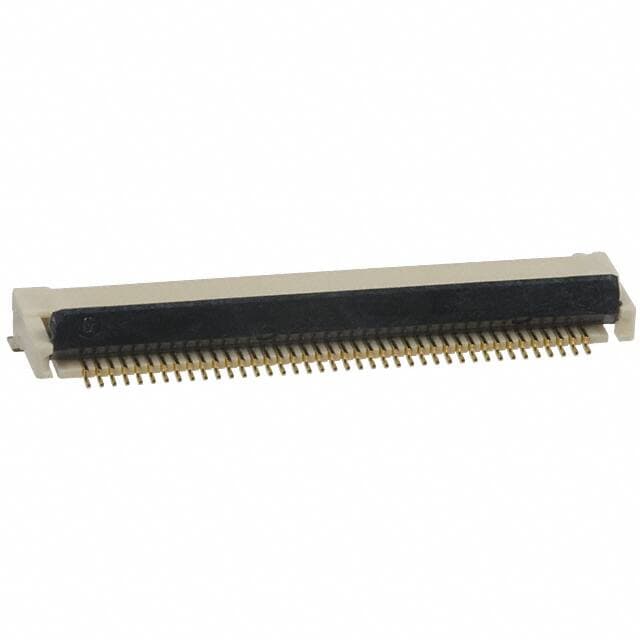

OMRON XF2M-4015-1A
OMRON XF2M-4015-1A

OMRON XF2M-4015-1A

Manufacturer No:

XF2M-4015-1A

Manufacturer:

OMRON

Package:

Description:

XF2M Series FPC Tape & Reel (TR) 0.020 0.50mm Solder Surface Mount, Right Angle Gold -30°C~85°C 0.5A

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XF2M-4015-1A information

OMRON XF2M-4015-1A technical specifications, attributes, parameters and parts with similar specifications to OMRON XF2M-4015-1A.

  • Type
  • Parameter
  • Factory Lead Time
  • 14 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount, Right Angle
  • Housing Material
  • Liquid Crystal Polymer (LCP), Halogen Free
  • Actuator Material
  • Liquid Crystal Polymer (LCP), Halogen Free
  • ActuatorColor
  • Black
  • Contact Materials
  • Copper Alloy
  • Operating Temperature
  • -30°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • XF2M
  • Published
  • 2004
  • JESD-609 Code
  • e4
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Number of Rows
  • 1
  • Gender
  • Receptacle
  • Additional Feature
  • LOW PROFILE
  • Voltage - Rated DC
  • 50V
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Option
  • GENERAL PURPOSE
  • Current Rating (Amps)
  • 0.5A
  • Pitch
  • 0.020 0.50mm
  • Total Number of Contacts
  • 40
  • Orientation
  • Right Angle
  • Depth
  • 6.2mm
  • Current Rating
  • 500mA
  • Reference Standard
  • UL
  • Contact Finish
  • Gold
  • Voltage - Rated AC
  • 50V
  • Reliability
  • COMMERCIAL
  • Number Of PCB Rows
  • 1
  • Lead Pitch
  • 500μm
  • PCB Contact Pattern
  • RECTANGULAR
  • UL Flammability Code
  • 94V-0
  • Housing Color
  • Natural
  • Contact Style
  • BELLOWED TYPE
  • Contact Resistance
  • 50mOhm
  • Insulation Resistance
  • 100MOhm
  • Max Voltage Rating (AC)
  • 50V
  • Max Current Rating
  • 500mA
  • Dielectric Withstanding Voltage
  • 250VAC V
  • Number of Poles
  • 40

Download datasheets and manufacturer documentation for OMRON XF2M-4015-1A.

Datasheets:

Other Related Documents:

Product Description:

Omron Electronics Inc-EMC Div's XF2M-4015-1A is a high-quality, surface-mount FPC connector designed for various applications. This connector features a low-profile design with a tapered cable end, making it ideal for use in compact electronic devices. The XF2M-4015-1A is constructed with a liquid crystal polymer (LCP) housing, ensuring halogen-free and lead-free materials. The connector has a rectangular contact pattern and is available in a 40-pin configuration.

Features:

  • Low Profile Design: The XF2M-4015-1A has a low profile, making it suitable for use in compact electronic devices.
  • Tapered Cable End: The connector features a tapered cable end, ensuring easy mating and unmating.
  • Gold Contact Finish: The connector has a gold contact finish, providing excellent conductivity and durability.
  • Copper Alloy Contacts: The contacts are made of copper alloy, ensuring high reliability and durability.
  • Rotary Lock and Backlock: The connector features a rotary lock and backlock, ensuring secure mating and unmating.
  • Surface Mount Design: The connector is designed for surface mount applications, making it easy to integrate into electronic devices.

Applications:

  • Primary Applications: The XF2M-4015-1A is suitable for use in various electronic devices, such as smartphones, tablets, and laptops.
  • Secondary Applications: The connector can also be used in other applications, such as industrial control systems, medical devices, and automotive systems.

Alternative Parts:

  • XF2M-4015-1B: This is an alternative part number with a slightly different contact pattern.
  • XF2M-4015-2A: This is another alternative part number with a different housing material.

Embedded Modules:

  • Smartphone Modules: The XF2M-4015-1A is used in various smartphone modules, such as camera modules and fingerprint modules.
  • Tablet Modules: The connector is also used in tablet modules, such as display modules and audio modules.

FAQs:

Q: What is the maximum current rating of the XF2M-4015-1A? A: The maximum current rating of the XF2M-4015-1A is 500mA.

Q: What is the maximum voltage rating of the XF2M-4015-1A? A: The maximum voltage rating of the XF2M-4015-1A is 50V AC and 50V DC.

Q: What is the material flammability rating of the XF2M-4015-1A? A: The material flammability rating of the XF2M-4015-1A is UL94 V-0.

Q: What is the reliability of the XF2M-4015-1A? A: The reliability of the XF2M-4015-1A is commercial-grade.

Q: Is the XF2M-4015-1A RoHS compliant? A: Yes, the XF2M-4015-1A is RoHS compliant.

Q: What is the packaging of the XF2M-4015-1A? A: The XF2M-4015-1A is packaged in a tape and reel (TR) format.
