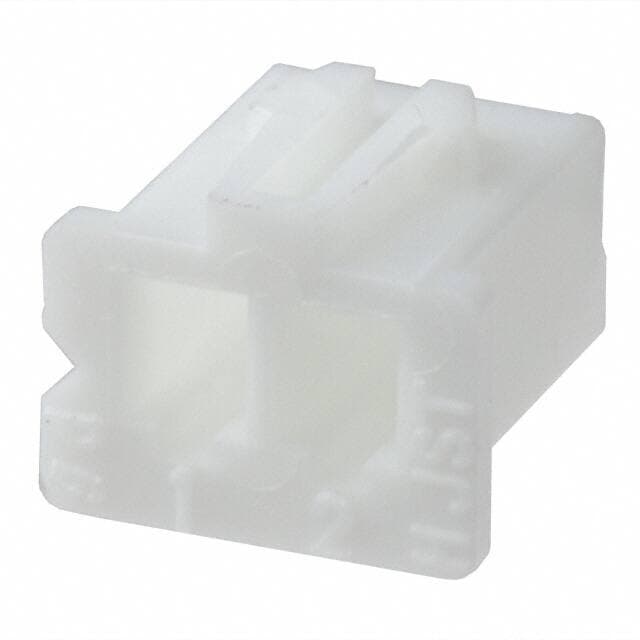

JST XHP-2
JST XHP-2

JST XHP-2

Manufacturer No:

XHP-2

Manufacturer:

JST

Package:

Description:

1 Rows Receptacle Bulk Natural 2 Positions Free Hanging (In-Line) Female Socket Crimp XH Polyamide

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XHP-2 information

JST XHP-2 technical specifications, attributes, parameters and parts with similar specifications to JST XHP-2.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Contact Material
  • Bronze, Tin
  • Mount
  • Cable, Free Hanging
  • Mounting Type
  • Free Hanging (In-Line)
  • Housing Material
  • Polyamide
  • Weight
  • 28.349523g
  • Packaging
  • Bulk
  • Series
  • XH
  • Published
  • 2001
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • ECCN Code
  • EAR99
  • Connector Type
  • Receptacle
  • Number of Positions
  • 2
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -25°C
  • Color
  • Natural
  • Number of Rows
  • 1
  • HTS Code
  • 8536.69.40.40
  • Contact Finish - Mating
  • NOT SPECIFIED
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Contact Type
  • Female Socket
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Pitch
  • 0.098 2.50mm
  • Total Number of Contacts
  • 2
  • Orientation
  • Straight
  • Depth
  • 7.75mm
  • Reach Compliance Code
  • unknown
  • Current Rating
  • 3A
  • Voltage - Rated AC
  • 250V
  • Lead Pitch
  • 2.5mm
  • Mating Information
  • MULTIPLE MATING PARTS AVAILABLE
  • UL Flammability Code
  • 94V-0
  • Housing Color
  • White
  • Contact Resistance
  • 10mOhm
  • Insulation Resistance
  • 1GOhm
  • Note
  • Contacts Not Included
  • Max Voltage Rating (AC)
  • 250V
  • Max Current Rating
  • 3A
  • Wire Gauge (Max)
  • 30 AWG
  • Wire Gauge (Min)
  • 22 AWG
  • Wire/Cable Gauge
  • 22 AWG
  • Max Voltage Rating (DC)
  • 250V

Download datasheets and manufacturer documentation for JST XHP-2.

Datasheets:

XHP-2 Overview


This product is packaged in a Receptacle cartonMounting type Free Hanging (In-Line) is assigned to the device.It's packaged in a Bulk case.There is a product in the XH Series.You've got Cable, Free Hanging mounted on the part.

XHP-2 Features


XH series

XHP-2 Applications


There are a lot of JST Sales America Inc. XHP-2 Rectangular Connectors applications.

  • Anywhere power is distributed

  • Electrical substations

  • Measuring & Control Technology

  • Transportation

  • Datacom

  • Data Technology

  • LED municipal outdoor and street lighting

  • Refrigeration control

  • Industrial Automation

  • Automotive Electronics
