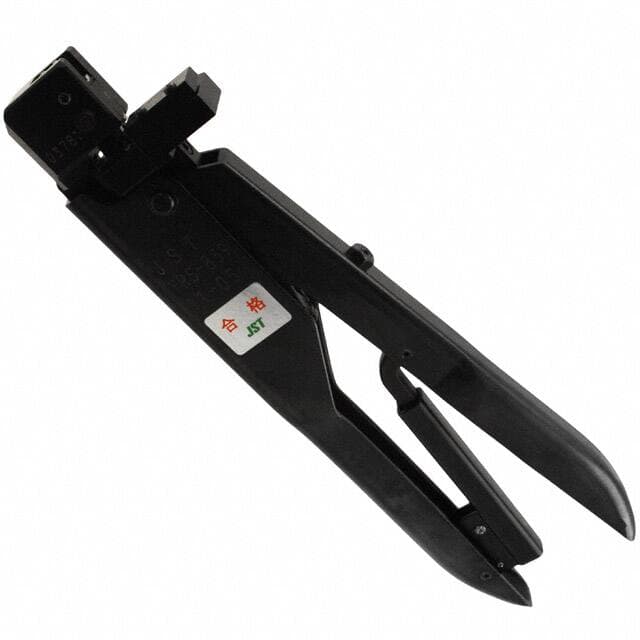

YRS-859 information
JST YRS-859 technical specifications, attributes, parameters and parts with similar specifications to JST YRS-859.
- Type
- Parameter
- Factory Lead Time
- 16 Weeks
- Series
- SH
- Published
- 2006
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Wire/Cable Gauge
- 28 AWG
- Wire Gauge or Range - AWG
- 28-30 AWG
- Tool Type
- Hand Crimper
- Tool Method
- Manual
- Ratcheting
- No Ratchet
- Wire Entry Location
- Side Entry
- Length
- 224mm
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for JST YRS-859.
YRS-859 Description
The YRS-859 is a JST YRS Hand Ratcheting Crimping Tool for SSH. A hand-operated strip feed crimping tool from JST that is strong, dependable, and simple to use is intended to crimp side-feeding open barrel strip terminals onto the wire. The strip terminals can either be crimped right off the reel or cut to the necessary length. Two handles, a ratchet mechanism, a feeding plate, guide and alignment features, and precisely honed dies make up this hand tool. There are two crimping locations for 30 AWG and 28 AWG available when the upper die is inverted.
YRS-859 Features
Ratchet mechanism ensures full crimp cycle is achieved
Guides and carriers for accurate positioning of strip terminals
Durable and easy to use
Precision ground dies
YRS-859 Applications
A crimping tool is the tool used to deform the material and create the connection. Crimping is commonly used in electrical work, to attach wires together or wire to other connectors.
