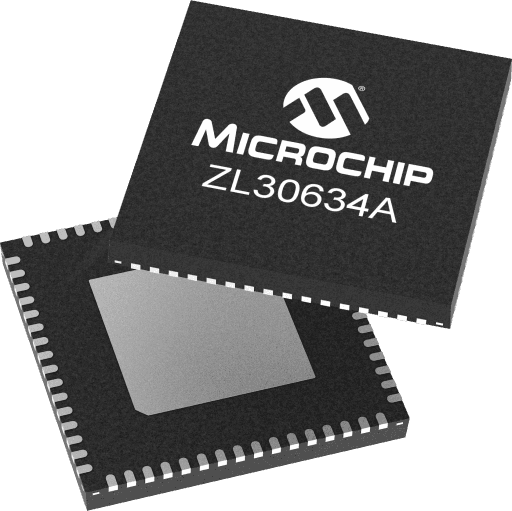

Microchip ZL30634ALDG1

Manufacturer No:

ZL30634ALDG1

Manufacturer:

Microchip

Package:

Description:

SyncE Network Synchronizer with 4 Independent Channels with eToD interface

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ZL30634ALDG1 information

Microchip ZL30634ALDG1 technical specifications, attributes, parameters and parts with similar specifications to Microchip ZL30634ALDG1.

Type
Parameter

5G Product
Yes

DataCenter
Yes

FiveGRAN
Yes

IEEE1588
No

SmartGrids
Yes

SyncE
Yes

Wireline
Yes

Download datasheets and manufacturer documentation for Microchip ZL30634ALDG1.

Product Brief:

164a7a0e3f173d2a8248ec1720841e67.pdf

Application Notes:

a81cd4918292330f2f81b523028826dd.pdf

f25eb2045c3116e12d6c398ab16fe044.pdf

The ZL30634A is a feature-rich network synchronization solution with up to seven independent DPLLs, five extremely low output jitter synthesizers and embedded time-of-day (eToD) features. The eToD features include a 3-wire MiToDBasic output interface and a 1-wire MiToDSync input/output interface. This solution is ideal for Synchronous Ethernet (SyncE) central timing applications such as routers, switches, optical transparent network and 4G/5G wireless base stations (CU/DU/RU).

We also have ZL3064x as line card jitter attenuators, such as ZL30642A, to form full SyncE&IEEE1588 Timing solution for any rack system.

Ultra Precise Timing for 5G Radio Access Networks
Four independent DPLL clock channels plus three additional DPLLs for NCO Hybrid, Split XO and redundant oscillator modes
Five output synthesizers
Any-to-any frequency conversion per channel
Inputs: up to 10, differential or single-ended
Outputs: up to 10 differential, up to 20 CMOS
Output jitter 100 fs RMS typical for 156.25 MHz 12 kHz to 20 MHz
Core power consumption <0.9W

Physical-layer compliance with ITU-T G.8262, G.8262.1, G.813, G.812, Telcordia GR-1244, GR-253
Enables 5G wireless applications with sub-100 ns time/phase alignment requirements
Hitless reference switching

Automatic self-configuration at power-up from internal Flash memory, 7 configurations
Input-to-output alignment <100 ps
Numerically controlled oscillator behavior in each DPLL and each synthesizer
Easy-to-configure design requires no external VCXO or loop filter components
5 GPIO pins with many possible behaviors, each REF can be GPI, each OUT can be GPO
SPI or I2C processor Interface
1.8V and 3.3V core VDD voltages
Easy-to-use evaluation/programming software
MiToDSync 1-wire time-of-day interface in/out
MiToDBasic 3-wire time-of-day interface out

User Guide

PURCHASE
