Microchip ZL40230LDG1
Microchip ZL40230LDG1

Microchip ZL40230LDG1

Manufacturer No:

ZL40230LDG1

Manufacturer:

Microchip

Package:

48-VFQFN Exposed Pad

Description:

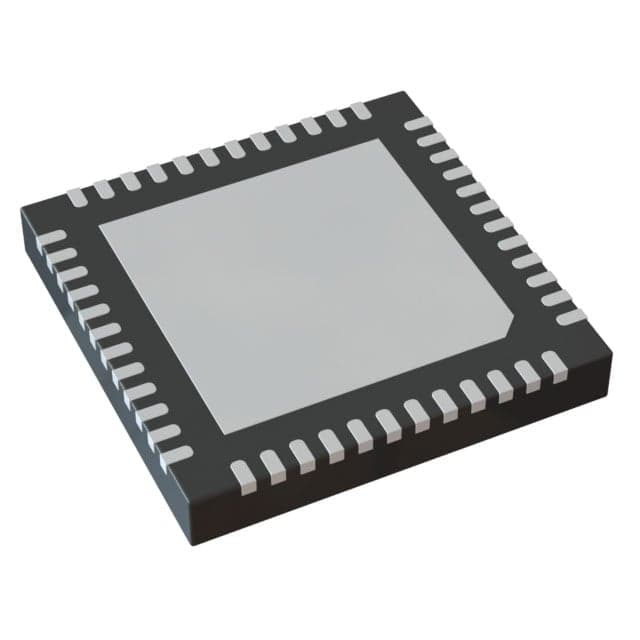

Precision 1:10 Low Skew/Low Jitter Buffer

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ZL40230LDG1 information

Microchip ZL40230LDG1 technical specifications, attributes, parameters and parts with similar specifications to Microchip ZL40230LDG1.

  • Type
  • Parameter
  • Description
  • Fanout Buffer
  • Input
  • LVPECL/LVDS/HCSL/SSTL/CML/LVCMOS
  • Output
  • LVPECL/LVDS/HCSL/LVCMOS
  • Supply Voltage
  • 1.5/1.8/2.5/3.3
  • Max Freq (GHz)
  • 1.6
  • Icc (mA)
  • 0
  • Max Within Device Skew (ps)
  • 40
  • OE
  • True
  • Input Mux
  • True
  • Number Of Outputs
  • 10
  • PCIe Gen
  • 1,2,3,4,5
  • Buffer Type
  • Fanout
  • Fanout
  • 1:10

Download datasheets and manufacturer documentation for Microchip ZL40230LDG1.

Data Sheets:

Application Notes:

The ZL40230 is a programmable or hardware pin controlled low additive jitter, low power 3 x 10 LVPECL/HCSL/LVDS fanout buffer.

Two inputs can accept signal in differential (LVPECL, SSTL, LVDS, HSTL, CML ) or single ended (LVPECL or LVCMOS) format and the third input can accept a single ended signal or it can be used to build a crystal oscillator by connecting an external crystal resonator between its XIN and XOUT pins. All the other components for building crystal oscillator are built in device such as load capacitance, series and shunt resistors.

The ZL40230 has ten LVPECL/HCSL/LVDS outputs which can be powered from 3.3V or 2.5V supply. Each output can be independently enabled/disabled via SPI bus. The type of each output driver can be programmed to be LVPECL, HCSL or LVDS. Hence, the device can be configured to support different signaling formats depending on the application.



  • 3 to 1 input Multiplexer: Two inputs accept any differential (LVPECL, HCSL, LVDS, SSTL, CML, LVCMOS) or a single ended signal and the third input accepts a crystal or a single ended signal
  • Ten differential LVPECL/LVDS/HCSL outputs
  • One LVCMOS output
  • Ultra-low additive jitter: 24fs (integration band: 12kHz to 20MHz at 625MHz clock frequency)
  • Supports clock frequencies from 0 to 1.6GHz
  • Supports 2.5V or 3.3V power supplies on LVPECL/LVDS/HCSL outputs
  • Supports 1.5V, 1.8V, 2.5V or 3.3V on LVCMOS output
  • Embedded Low Drop Out (LDO) Voltage regulator provides superior Power Supply Noise Rejection
  • Maximum output to output skew of 40ps
  • Device controlled via SPI or hardware control pins

User Guide
