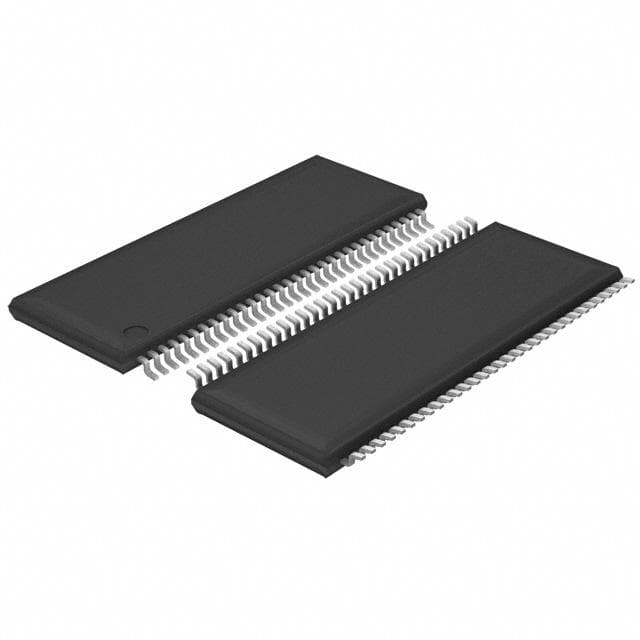

Renesas IDT74SSTV16859PAG

Manufacturer No:

IDT74SSTV16859PAG

Manufacturer:

Renesas

Package:

TSSOP

Description:

13 Bit 2.5V Specialty Logic IC 64 Pin 0.5mm 2.5V TSSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT74SSTV16859PAG information

Renesas IDT74SSTV16859PAG technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT74SSTV16859PAG.

Type
Parameter

Mount
Surface Mount

Package / Case
TSSOP

Number of Pins
64

Packaging
Rail/Tube

Published
2007

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
64

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Other Logic ICs

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
2.5V

Terminal Pitch
0.5mm

Frequency
200MHz

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
64

Number of Outputs
26

Qualification Status
Not Qualified

Number of Elements
1

Power Supplies
2.5V

Temperature Grade
INDUSTRIAL

Max Supply Voltage
2.7V

Min Supply Voltage
2.3V

Number of Bits
13

Propagation Delay
2.8 ns

Family
SSTV

Logic Function
Buffer

Logic IC Type
D FLIP-FLOP

High Level Output Current
-20mA

Low Level Output Current
20mA

Clock Edge Trigger Type
Positive Edge

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT74SSTV16859PAG.

IDT74SSTV16859PAG Overview

A packaging method based on Rail/Tube is employed.You can find it in package TSSOP.The voltage of 2.5V ensures that the device can operate normally.Using a size of 13 bits, the memory stores data.In total, there are 64 pins on the component.With 64 terminations, signals won't reflect off the end of the transmission line.The way of mounting it is Surface Mount.The construction of this device is made up of 64 pins.Keeping the minimum supply voltage at 2.3V allows normal operation.Keeping the maximum supply voltage at 2.7V allows normal use to continue.It belongs to the Other Logic ICs subcategory.It is important to maintain the power supplies of 2.5V for ease of use.An electronic part from the SSTV family is optimized for reliable performance and high quality.Keeping its operating temperature below 70°C is very crucial.Ensure that its operating temperature does not go below 0°C.In total, it contains 1 elements.It operates at a frequency of 200MHz.An IC with logic type D FLIP-FLOP is used.26 outputs form the basis of its configuration.

IDT74SSTV16859PAG Features

IDT74SSTV16859PAG Applications

There are a lot of Integrated Device Technology (IDT)
IDT74SSTV16859PAG Specialty Logic ICs applications.

Wireless network systems
Satellite communications networks
Ethernet circuitry
Wired telephone
Cordless telephone
Desktop PC
Notebook
Pocket PC
Desktop radio
Clock radio
