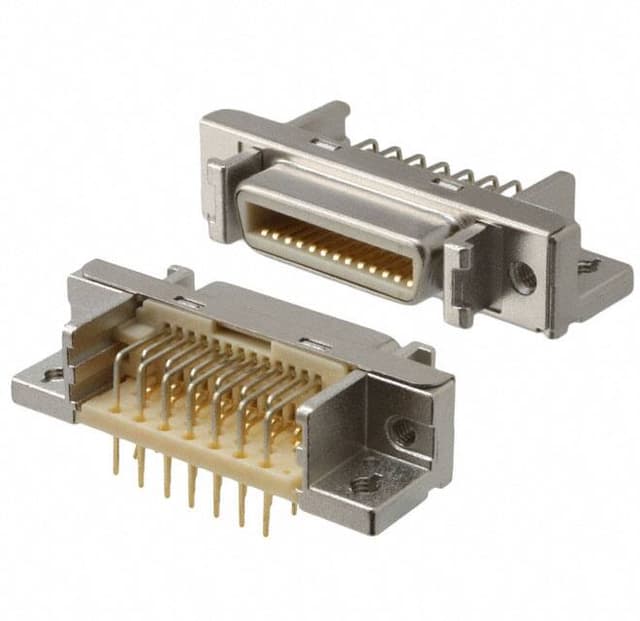

3M N10226-5212PC

Manufacturer No:

N10226-5212PC

Manufacturer:

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

N10226-5212PC information

3M N10226-5212PC technical specifications, attributes, parameters and parts with similar specifications to 3M N10226-5212PC.

Type
Parameter

Factory Lead Time
14 Weeks

Contact Material
Copper

Contact Plating
Gold

Mount
Panel, Through Hole

Mounting Type
Panel Mount, Through Hole, Right Angle

Insulation Material
Glass

Housing Material
Polychlorinated

Series
102, Mini D Ribbon (MDR)

Published
2000

Feature
Shielded

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
26

Termination
Solder

Connector Type
Receptacle

Number of Positions
26

Max Operating Temperature
105°C

Min Operating Temperature
-55°C

Number of Rows
2

Gender
Receptacle

Pitch
2.54mm

Orientation
Right Angle

Depth
16.7mm

Current Rating
1A

Number of Contacts
26

Housing Color
Beige

Lead Length
3m

Flange Feature
Housing/Shell (M2.6)

Max Current Rating
1A

Plating
Gold

Connector Style
Outer Shroud Contacts

Number of Ports
1

Cable Length
3m

Sensing Distance
3 m

Length
37.2mm

Width
13.9mm

Contact Finish Thickness
30.0?in 0.76?m

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Flammability Rating
UL94 V-0

Lead Free
Lead Free

Download datasheets and manufacturer documentation for 3M N10226-5212PC.

Datasheets:

3m-n102a052e2vc-datasheets-0217.pdf

3m-83158000-datasheets-4461.pdf

3m-10268m218pe-datasheets-9756.pdf

ConflictMineralStatement:

3m-29259-conflictmineralstatement-2841.pdf

3M D-Shaped Connectors - Centronics N10226-5212PC are a type of mini-D 26-position right angle receptacle connectors. These connectors are designed to provide reliable and secure connections in a variety of applications. They feature a low profile design, which allows them to fit into tight spaces, and a durable construction that ensures a long service life. The connectors are also designed to be easy to install and remove, making them ideal for applications where frequent connection and disconnection is required.
